Kampmann GmbH & Co. KG
Lüftungsgerät 6000 m³/h, Rotationswärmetauscher
Registration Code: X03HTU
Materialmix
Metalle
Product description

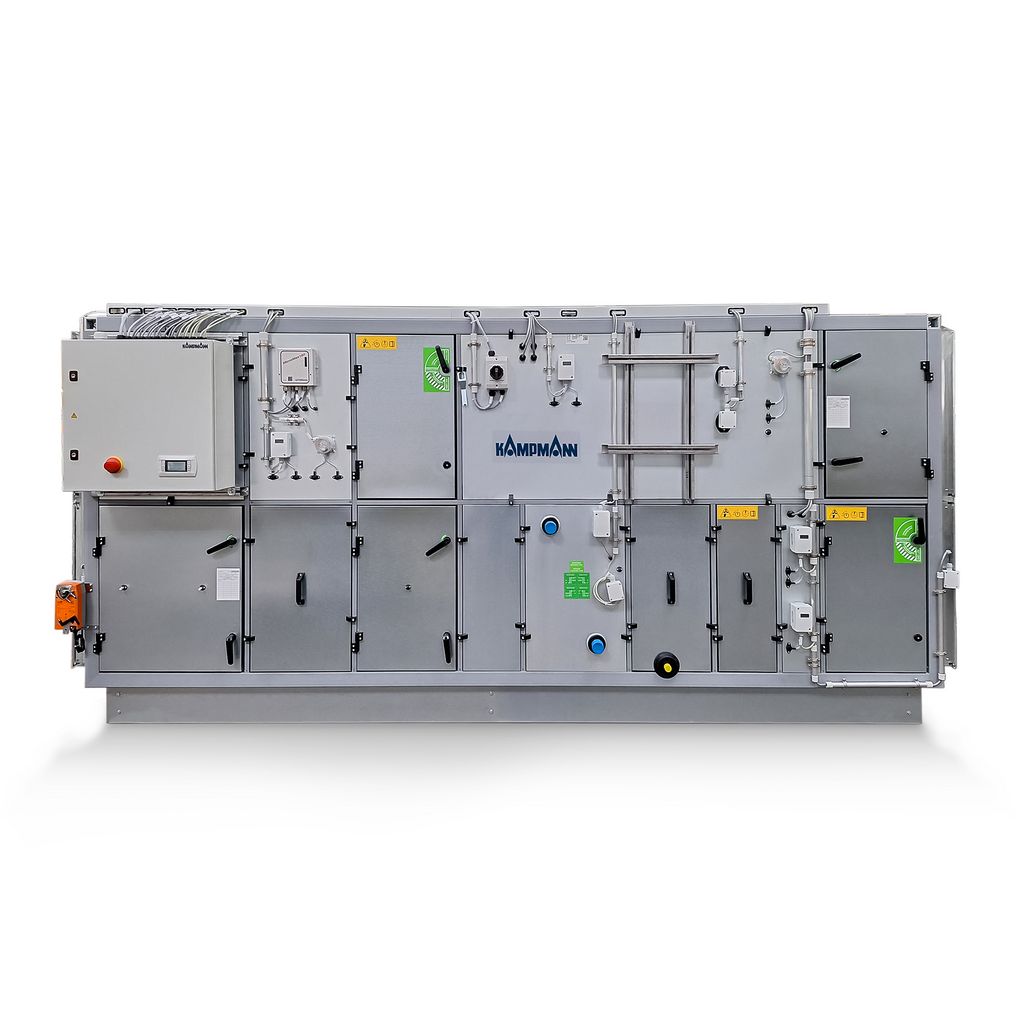

This air handling unit is designed for indoor installation and provides reliable air treatment for various applications. It is equipped with a register made of copper tubes and aluminium fins, a rotary heat exchanger for efficient energy recovery, high-performance fans for air distribution and filters to ensure clean supply air. The robust design ensures durability, energy efficiency, and compliance with modern building requirements.Reference to the DGNB system
ENV1.1 Building life cycle assessment
ENV1.1 Building life cycle assessment
Photochemical ozone creation potential (POCP)
1) Production stage
1,71E+01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
2,16E-01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
8,40E-02
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-7,39E+00
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Unit
kg NMVOC-Equivalent
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Total use of non-renewable primary energy (PENRT)
1) Production stage
6,45E+04 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
9,29E+02 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,22E+02 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-2,79E+04 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Total use of renewable primary energy (PERT)
1) Production stage
1,01E+04 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
5,80E+01 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
5,90E+00 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-5,14E+03 MJ
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
General life cycle assessment data
Building material class
not relevant
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Reference Unit
1 unit
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
If necessary, conversion of the reference unit
No conversion necessary.
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
End of life cycle
The end of life is modeled according to the JRC Report, Annex C V2.1.
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Useful life
25 years
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Global Warming Potential (GWP)
1) Production stage
5,05E+03
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
4,73E+01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
8,02E+01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-2,26E+03
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Unit
kg CO2-Equivalent
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Eutrophication (EP)
1) Production stage
2,28E-01; 4,07E+00; 4,94E+01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
2,54E-03; 4,05E-02; 4,73E-01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,14E-03; 9,20E-02; 2,24E-01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1,15E-01; -1,66E+00; -1,96E+01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Unit
kg P-Eq. [EP-freshwater]; kg N-Eq. [EP-marine]; mol N-Eq. [EP-terrestrial]
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Acidification potential (AP)
1) Production stage
3,86E+01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
3,07E-01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
5,61E-02
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1,19E+01
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Unit
mol H+- Equivalent
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Ozone Depletion Potential (ODP)
1) Production stage
6,61E-05
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
1,14E-06
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,81E-07
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-2,28E-5
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
Unit
kg CFC11-Equivalent
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
ENV2.2 Potable water demand and waste water volume
ENV2.2 Potable water demand and waste water volume
Installation-specific connected load
Flow rate (for sanitary fittings)
not relevant l/sec
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Average flushing volume (of the sanitary equipment)
not relevant l/flush
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
ECO1.1 Life cycle costs
ECO1.1 Life cycle costs
Actual useful life
25 years
- Source
- EPD-IES-0025633
- Quality
- [Externally audited specific manufacturer information]
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO1.4 Ensuring sustainability aspects in tendering and contracting
Tender textes
Product-related tender texts available, reference to EPD and registration in the DGNB Navigator in the tender texts.
- Source
- Tender texts air handling units
- Quality
- [Unaudited manufacturer specification]
PRO2.5 Preparation of sustainable use
PRO2.5 Preparation of sustainable use
Maintenance, inspection, operating and care instructions
Yes, included in technical documentation.
- Source
- Technical documentation
- Quality
- [Unaudited manufacturer specification]
SOC1.2 Indoor air quality
SOC1.2 Indoor air quality
Indoor hygiene - volatile organic compounds VOCs
Formaldehyde concentration
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Other emission tests / labels
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
TVOC value
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Approval test according to AgBB scheme is available
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
SOC1.3 Acoustic comfort
SOC1.3 Acoustic comfort
Rated building sound insulation value R`w
not relevant dB
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
SOC1.4 Visual comfort
SOC1.4 Visual comfort
Visual contact with the outside
Class of the sun/glare protection with regard to visual contact to the outside
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Colour rendering
Color rendering index Ra of artificial lighting
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
TEC1.3 Quality of the building envelope
TEC1.3 Quality of the building envelope
Class of air permeability (joint permeability)
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Heat transfer coefficient U
not relevant W/(m²K)
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Documents
Contact the manufacturer
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
Friedrich-Ebert-Straße 128-130 49811 Lingen (Ems)
Related products from this manufacturer
#M2R69G

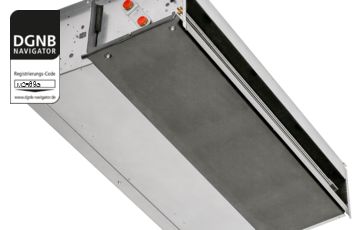

Venkon XL - Baugröße 1
