Kampmann GmbH & Co. KG
Katherm QK
Registration Code: M3HIYA
Holz und Holzwerkstoffe (u. nachw. Rohstoffe)
Metalle
Product description

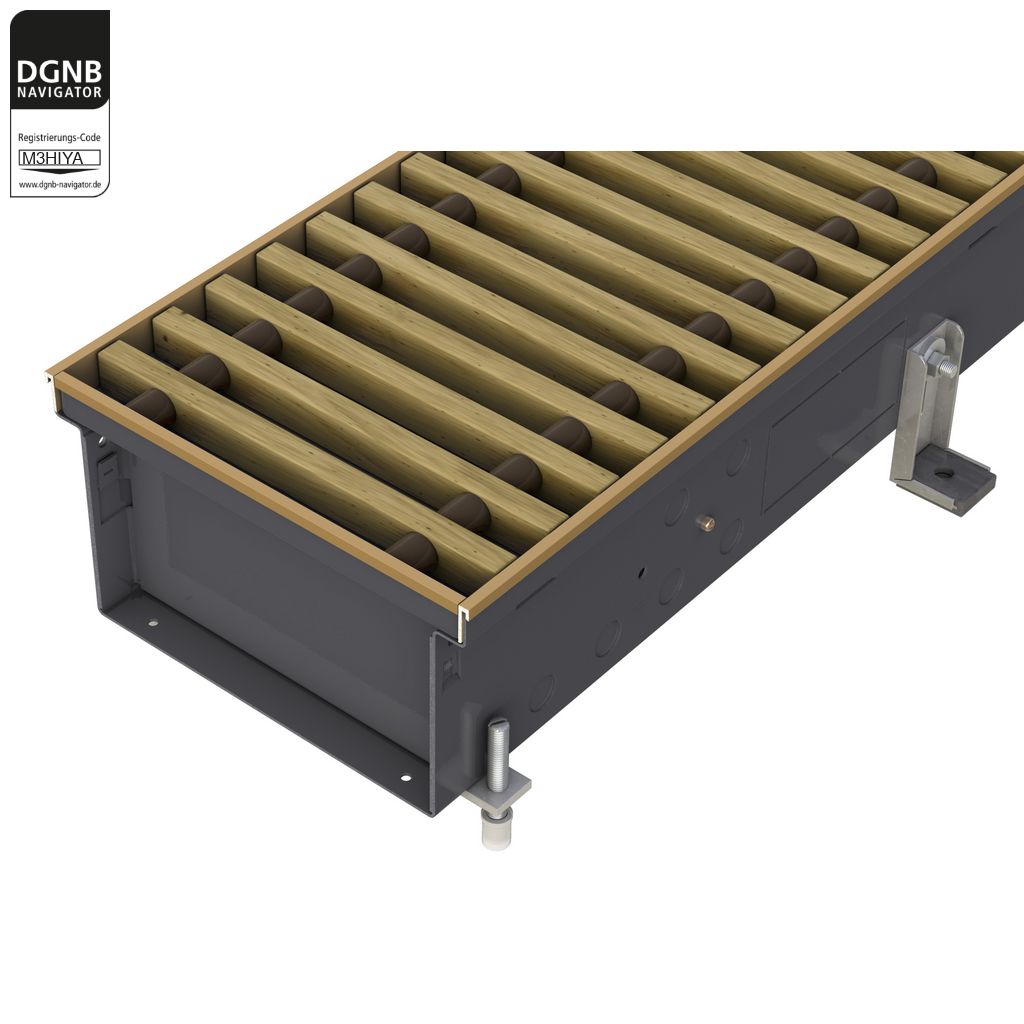

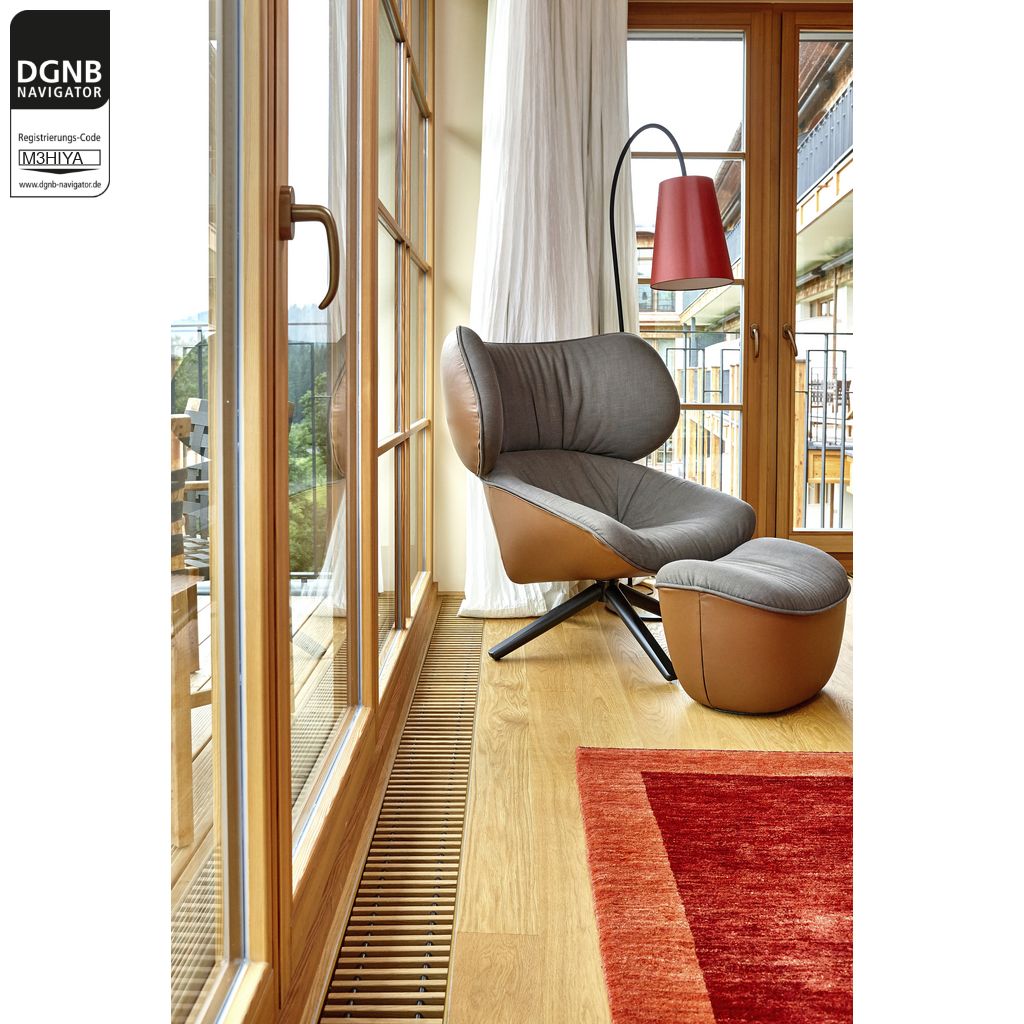

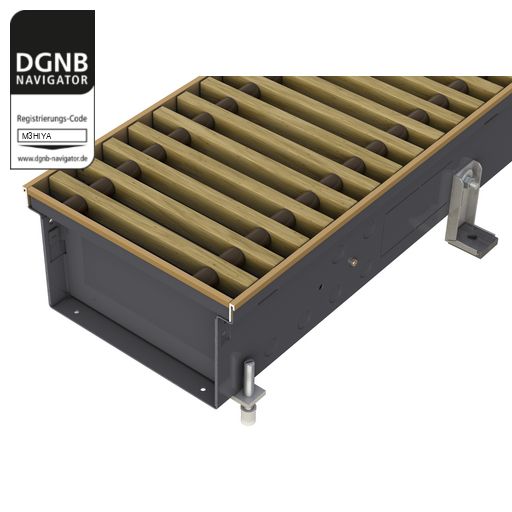

Trench units are mounted in the floor along floor-to-ceiling window surfaces. In combination with modern heating systems, effective and energy-saving heating of rooms can be achieved by the Katherm QK. The room air is drawn in by the fan, guided over the parallel convector and blown out into the room. The convector arranged on the window side ensures optimum cold air screening of the window, so that the heated air flows into the room without draughts. The Katherm QK is available in various duct widths, heights and lengths for heating the room as required. The unit has a convector, which consists of round copper pipes with aluminium fins and through which hot water flows. The EC cross-flow fan installed in the Katherm QK ensures that air flows evenly through the convector. The fan is controlled by a stepless speed control via an external 0-10 V signal. The units are also equipped with an electrotechnical control system to enable the units to be regulated according to the customer's requirements. The unit components are mounted in a floor trench, which is covered by a roll-up grille or a linear grille. This decorative cover of the trench unit is available in aluminium, brass, stainless steel and wood.The Katherm QK trench unit is used to heat rooms with large window areas. Exemplary areas of application for the unit are hotels, offices, sales and exhibition rooms.
Instructions for use
The units are used to heat all areas of buildings that need to be heated in winter. Within the room to be heated, the unit needs to be connected to the building's heating/ventilation system and to the building's power network. The operating limits and limits of use must be observed.Manufacturer note
Note on LCA data
The LCA data given were calculated according to the specifications of the EN 15804:2012+A2:2019 standard.Note on document download
All documents mentioned in this product profile (technical catalogue, environmental product declaration (EPD), assembly instructions) are available in their current version in the document download on the Kampmann GmbH & Co. KG website.Contact the manufacturer
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
Friedrich-Ebert-Straße 128-130 49811 Lingen (Ems)
