Kampmann GmbH & Co. KG
Katherm HK
Registration Code: PES22M
Holz und Holzwerkstoffe (u. nachw. Rohstoffe)
Metalle
Product description

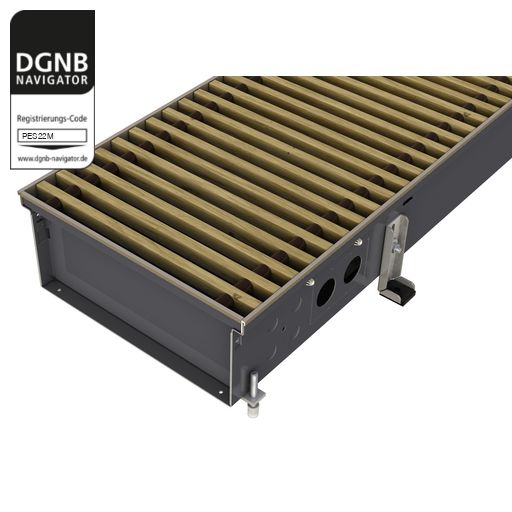

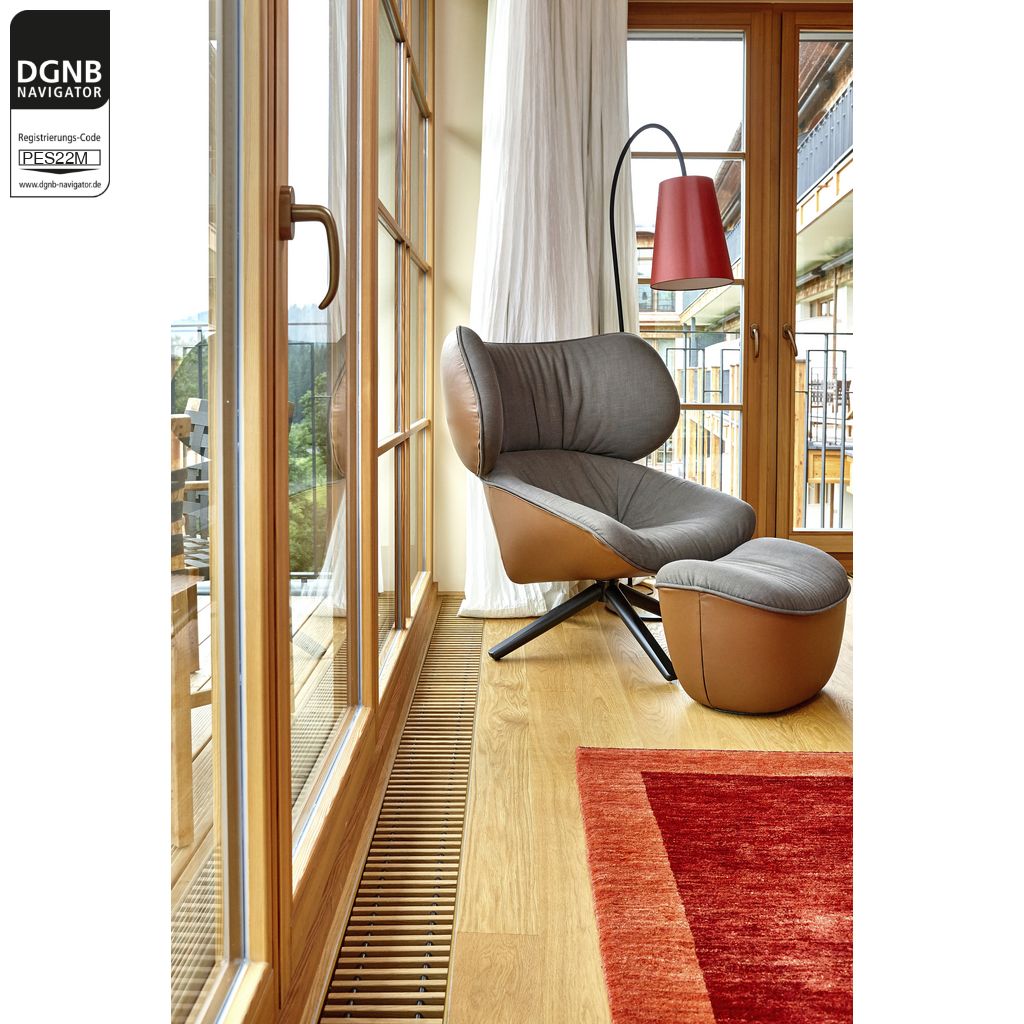

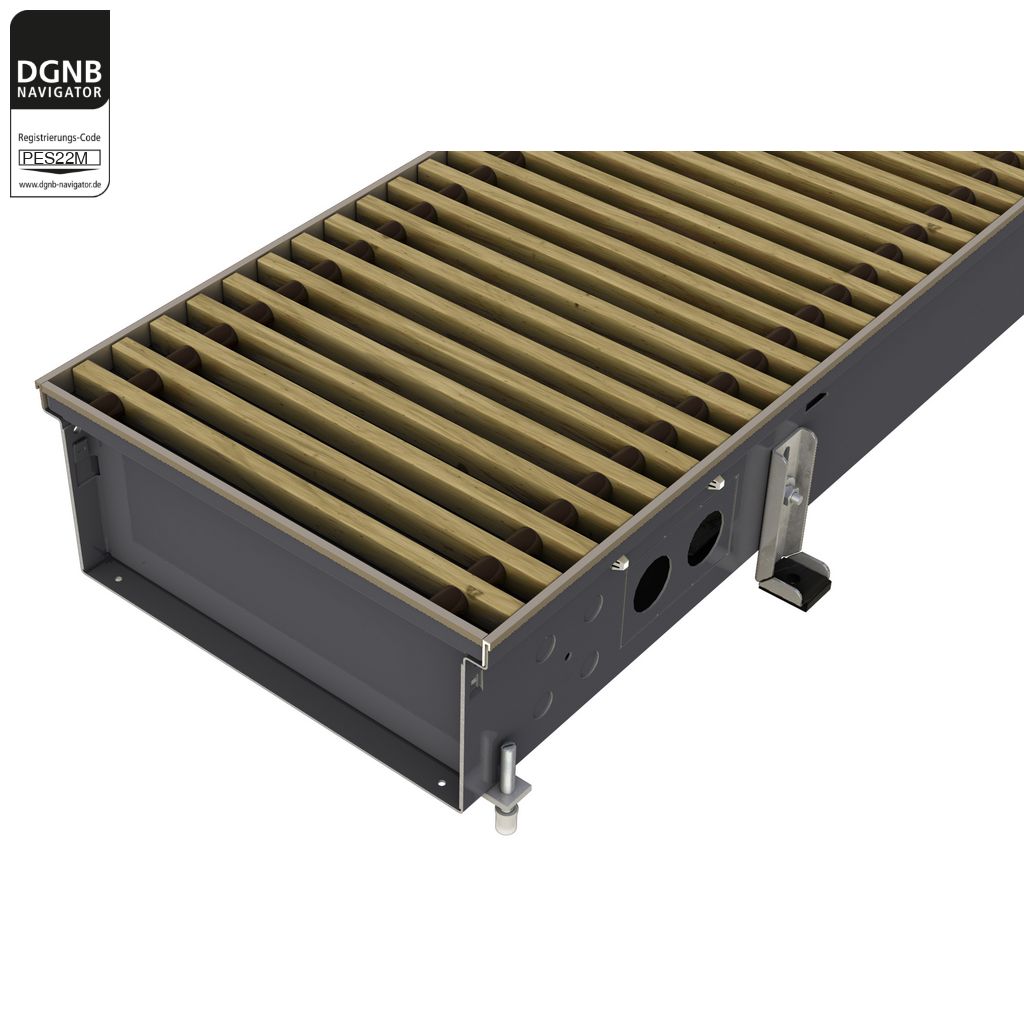

Trench units are installed along floor-to-ceiling window surfaces in the floor. The Katherm HK provides a demand-oriented supply of filtered, heated or cooled circulating air into the room. The unit is available in various duct widths, heights and lengths for heating and cooling as required. The Katherm HK has a convector through which hot water flows for heating and cold water flows for cooling. The convector consists of round copper pipes with aluminium fins and is available as a 2- and 4-pipe system. The EC cross-flow fan installed in the Katherm HK ensures that air flows evenly through the convector. The fan is controlled by a stepless speed control via an external 0-10 V signal. In order to safely discharge the condensate produced, the units are equipped with a condensate tray and, if necessary, a condensate pump. The units are also equipped with an electrotechnical control system in order to be able to regulate the units according to the customer's requirements. The unit components are mounted in a floor trench, which is covered by a roll-up grille or a linear grille. This decorative cover of the trench unit is available in aluminium, brass, stainless steel and wood.The Katherm HK trench unit is used for the heating and cooling of rooms with large window areas. Exemplary areas of application for the unit are hotels, offices, sales and exhibition rooms.
Instructions for use
The units are used for heating and/or cooling all areas of buildings that need to be heated in winter and cooled in summer due to the high incidence of sunlight through the glass façades. Within the room, the unit needs to be connected to the building's heating/cooling/ventilation system and to the building's waste water and power network. The operating limits and limits of use must be observed.Manufacturer note
Note on LCA data
The LCA data given were calculated according to the specifications of the EN 15804:2012+A2:2019 standard.Note on document download
All documents mentioned in this product profile (technical catalogue, environmental product declaration (EPD), assembly instructions) are available in their current version in the document download on the Kampmann GmbH & Co. KG website.Contact the manufacturer
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
Friedrich-Ebert-Straße 128-130 49811 Lingen (Ems)
Related products from this manufacturer
#WR7MSF
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
In Komfortgebäuden aller Art mit hohem Heiz- und Kühlbedarf sowie hohem Raumnutzer-Anspruch kommen Fan Coils zum Einsatz. Der Fan Coil Venkon ist in vier Baugrößen erhältlich und kann als Grundgerät flexibel mit Verkleidungen kombiniert werden. Der E…
#M3HIYA
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG

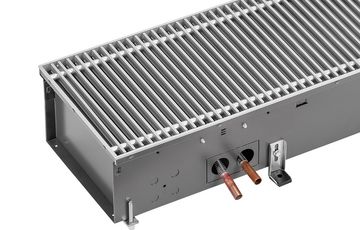

Unterflurkonvektoren werden entlang von bodentiefen Fensterflächen im Boden montiert. In Kombination mit modernen Heizsystemen kann durch den Katherm QK eine effektive und energiesparende Beheizung von Räumen erzielt werden. Die Raumluft wird vom Ven…
