Kampmann GmbH & Co. KG
Venkon - Baugröße 66
Registration Code: R717NL
Metalle
Product description

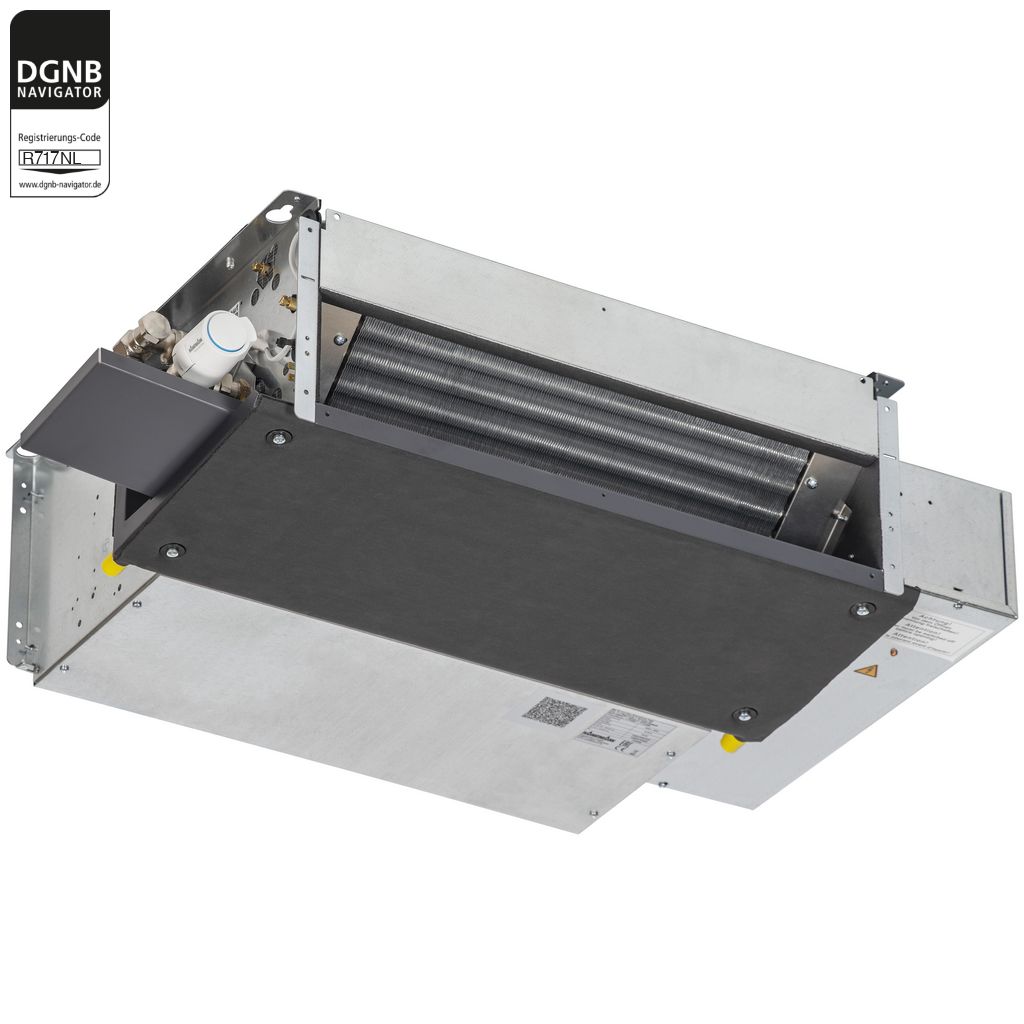

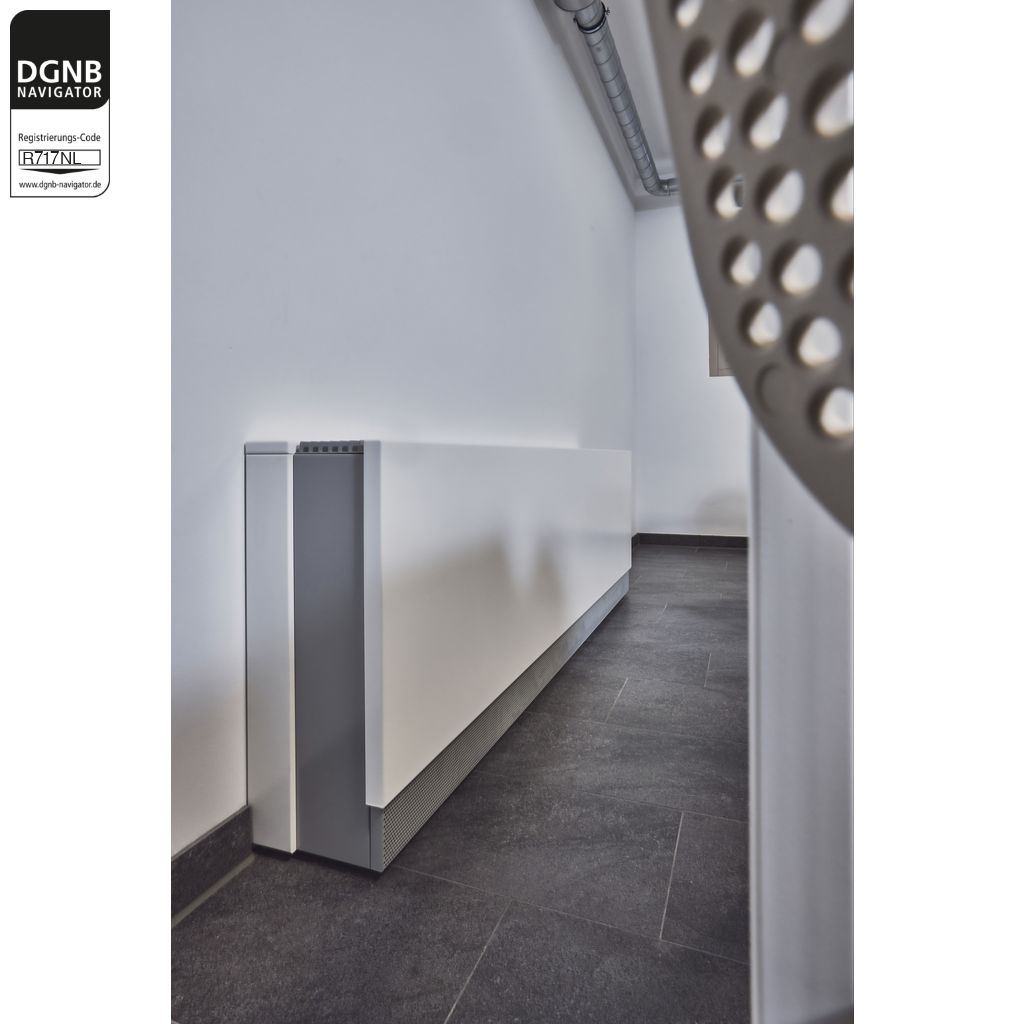

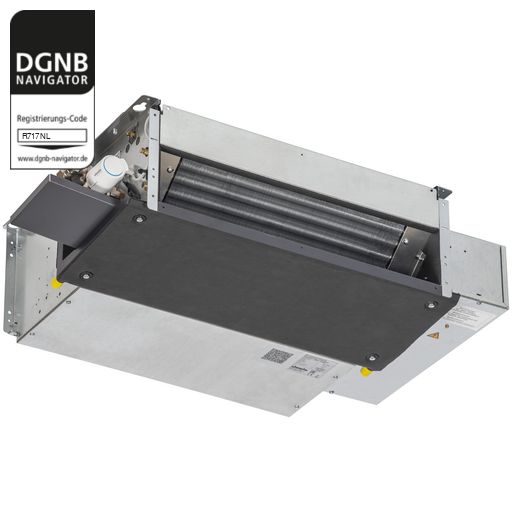

Fan coils are used in comfort buildings of all types with high heating and cooling requirements as well as exacting user requirements. The Fan Coil Venkon is available in four sizes and can be versatile combined with casings as a basic unit. The unit can be installed standing or hanging on the wall or ceiling. In addition, the unit can be mounted in shallow ceilings or wall-voids. The Venkon has a convector through which hot water flows for heating and cold water flows for cooling. The convector consists of round copper pipes with aluminium fins and is available as a 2- and 4-pipe system. The fan is controlled by a stepless speed control via an external 0-10 V signal. In order to safely discharge the condensate produced, the units are equipped with a condensate tray and, if necessary, a condensate pump. The units are also equipped with an electrotechnical control system in order to be able to regulate the units according to the customer’s requirements.The Venkon is used for buildings of all kinds, which require whisper-quiet cooling and/or heating with a visually discreet design.
Instructions for use
The units are used exclusively for heating and cooling dry and frost-free indoor areas. The unit must be connected to the on-site heating/cooling/ventilation/waste water systems as well as the power supply system within the room to be treated. The operating and application limits defined in the installation instructions must be followed.Manufacturer note
Note on downloading documents
All documents mentioned in this product profile (technical catalogue, environmental product declaration (EPD), installation instructions) are available in their current version in the document download on the Kampmann GmbH & Co. KG website.Note on life cycle assessment data
The LCA data given were calculated according to the specifications of the EN 15804:2012+A2:2019/AC:2021 standard.Contact the manufacturer
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
Friedrich-Ebert-Straße 128-130 49811 Lingen (Ems)
