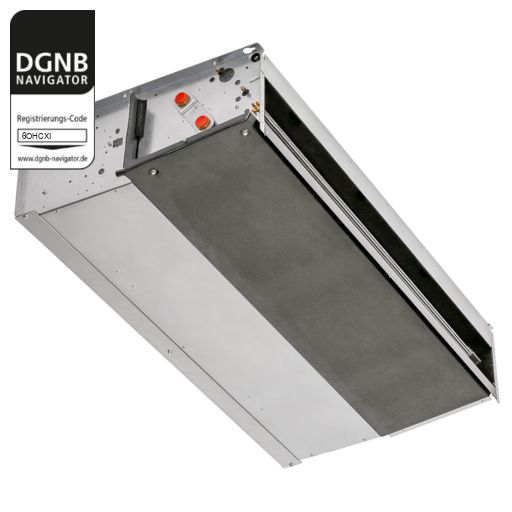

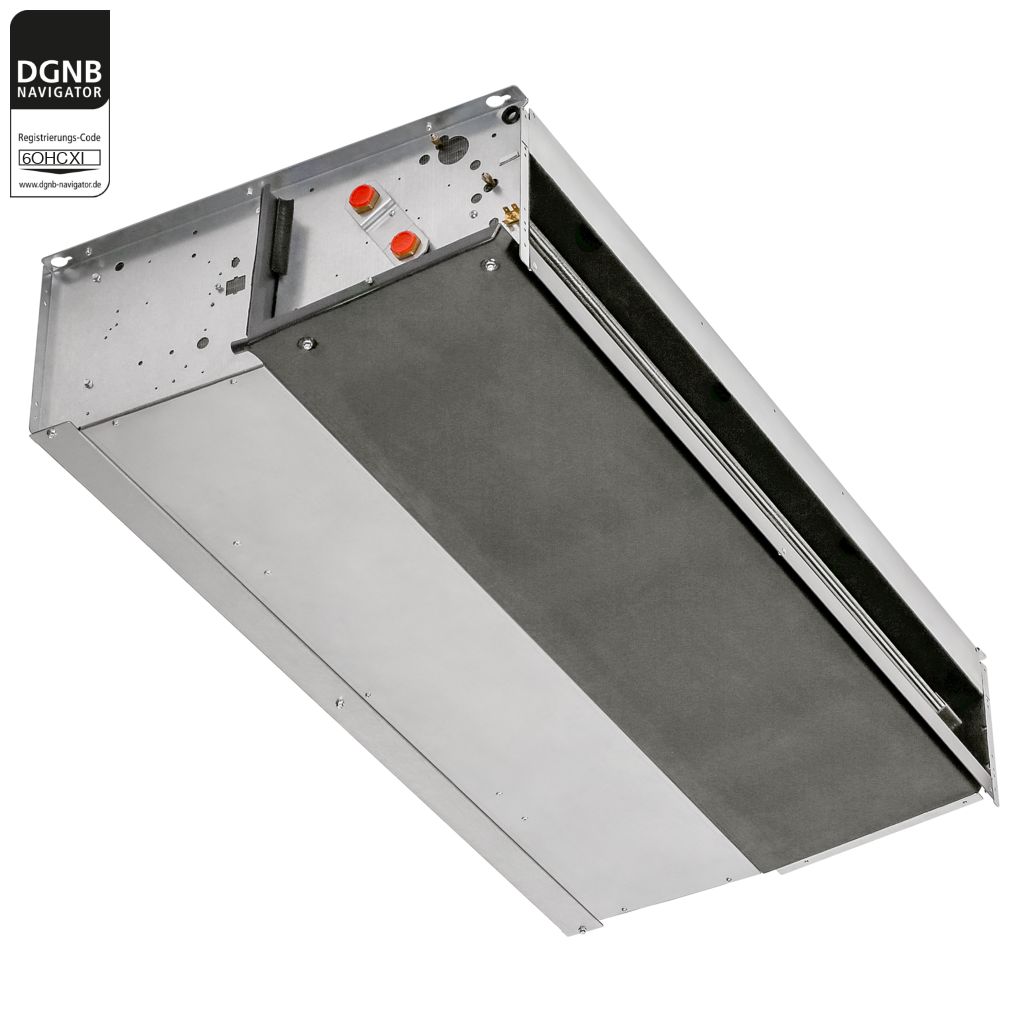

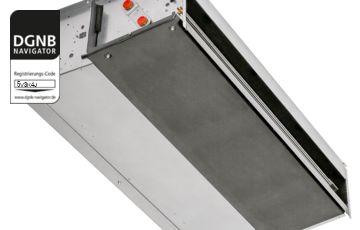

Venkon XL - Baugröße 4

Product description

Fan coils are used in comfort buildings of all types with high heating and cooling requirements as well as exacting user requirements. The fan coil Venkon XL is available in four sizes for each application and building of any kind that needs to be cooled and/or heated. The special characteristic is that the Venkon XL guarantees high outputs, even with high air-side pressure loss requirements. The Venkon XL has a convector through which hot water flows for heating and cold water flows for cooling. The convector consists of round copper pipes with aluminium fins and is available as a 2- and 4-pipe system. The fan is controlled by a stepless speed control via an external 0-10 V signal. In order to safely discharge the condensate produced, the units are equipped with a condensate tray and, if necessary, a condensate pump. The units are also equipped with an electrotechnical control system in order to be able to regulate the units according to the customer’s requirements.
