Getzner Werkstoffe GmbH Getzner Werkstoffe GmbH

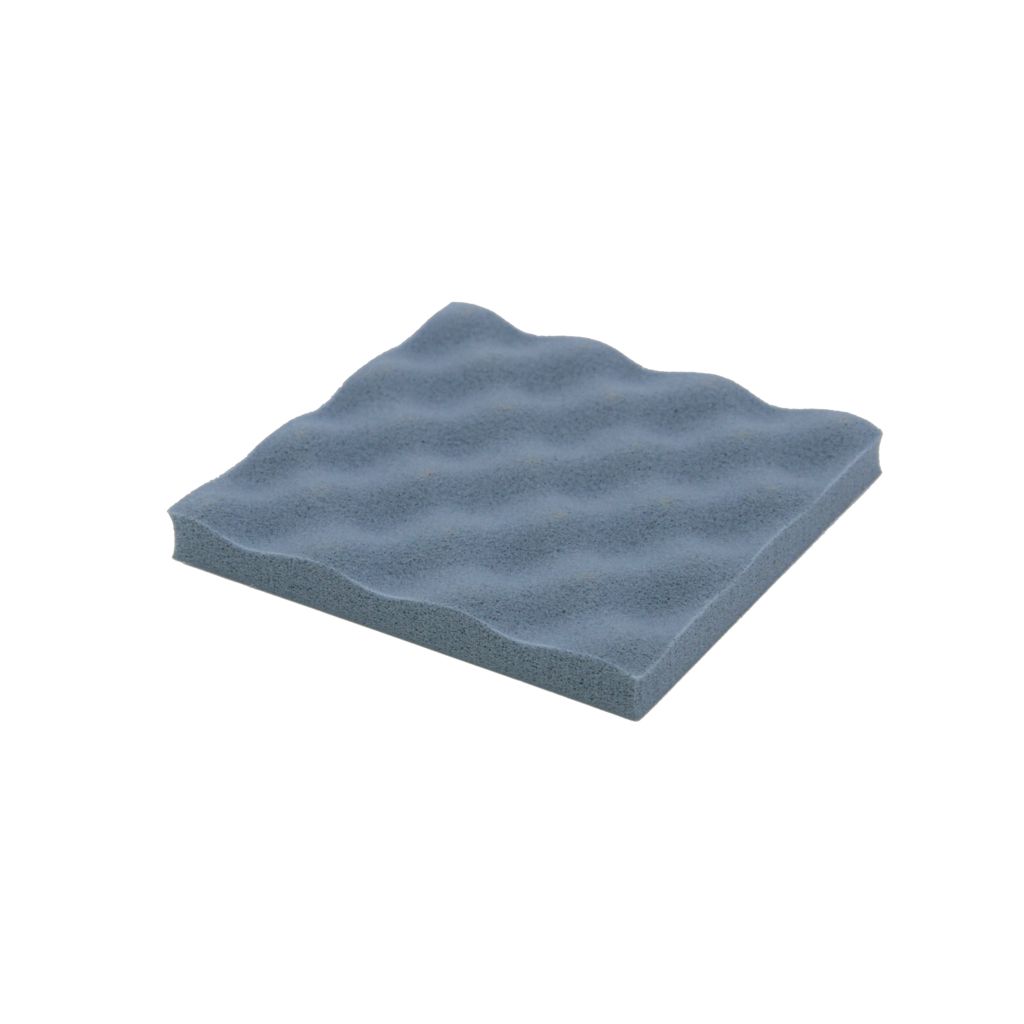

Acoustic Floor Mat 29

Registration Code: J812OB

Bauchemische Produkte

Product description

Heavy-load impact sound insulation made of volume-elastic polyurethane material, to be laid under wet or dry screeds. Free from plasticisers and harmful substances.
Impact sound reduction ∆Lw 29 dB
according to EN ISO 717-2"

Instructions for use

For proper application of the product, please refer to the applicable Safety Data Sheets and installation instructions provided by the manufacturer. In addition, the use of the technical data sheets and online configuration tools by Getzner is recommended to ensure correct project-specific material selection and dimensioning. These instructions help ensure the effective and safe use of the product in accordance with relevant technical requirements.

Reference to the DGNB system

ENV1.1 Building life cycle assessment
ENV1.1 Building life cycle assessment
Photochemical ozone creation potential (POCP)
1) Production stage
2.38E-02
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
2) Use stage
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
3) End of life stage
3.59E-03
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-2.05E-03
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Unit
kg NMVOC-Equivalent
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Total use of non-renewable primary energy (PENRT)
1) Production stage
1.90E+02 MJ
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
2) Use stage
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1.37E+00 MJ
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3.80E+01 MJ
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Total use of renewable primary energy (PERT)
1) Production stage
3.09E+01 MJ
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
2) Use stage
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
3) End of life stage
2.74E-01 MJ
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3.10E+00 MJ
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
General life cycle assessment data
Building material class
E
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Reference Unit
m²
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
If necessary, conversion of the reference unit
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
End of life cycle
Sylomer® products can be re-used, mechanically or chemically recycled, or used for energy recovery through thermal recycling
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Useful life
50 Years
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Global Warming Potential (GWP)
1) Production stage
9.00E+00
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
2) Use stage
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
3) End of life stage
4.83E+00
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-2.20E+00
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Unit
kg CO2-Equivalent
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Eutrophication (EP)
1) Production stage
1.29E-04;4.42E-03;4.72E-02
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
2) Use stage
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1.30E-07;1.40E-03;1.60E-02
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-6.65E-07;-6.82E-04;-7.36E-03
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Unit
kg P-Eq. [EP-freshwater]; kg N-Eq. [EP-marine]; mol N-Eq. [EP-terrestrial]
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Acidification potential (AP)
1) Production stage
1.55E-02
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
2) Use stage
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
3) End of life stage
2.87E-03
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3.21E-03
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Unit
mol H+- Equivalent
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Ozone Depletion Potential (ODP)
1) Production stage
9.71E-09
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
2) Use stage
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
3) End of life stage
4.42E-13
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1.28E-11
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
Unit
kg CFC11-Equivalent
Source
EPD-GET-20240071-IBA1-EN
Quality
[Externally audited specific manufacturer information]
ECO1.1 Life cycle costs
ECO1.1 Life cycle costs
Actual useful life
100 Years
Source
Statement Technical University of Munich
Quality
[Unaudited manufacturer specification]
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO1.4 Ensuring sustainability aspects in tendering and contracting
Tender textes
Tender specification AFM 29
Source
https://www.getzner.com/de/downloads?downloadTags=Tender%20Document,en,Acoustic%20Floor%20Mat
Quality
[Unaudited manufacturer specification]

Documents

Downloads

EPD Sylomer.pdf

pdf
2 MB

Installation Guideline Acoustic Floor Mat DE.pdf

pdf
175 KB

Brochure Acoustic Floor Mat DE.pdf

pdf
743 KB

Data Sheet Acoustic Floor Mat 29 DE.pdf

pdf
83 KB

Tender Specification AFM 29 DE.pdf

pdf
113 KB

Floor Build-up AFM 29 EN.pdf

pdf
187 KB
