Kampmann GmbH & Co. KG Kampmann GmbH & Co. KG

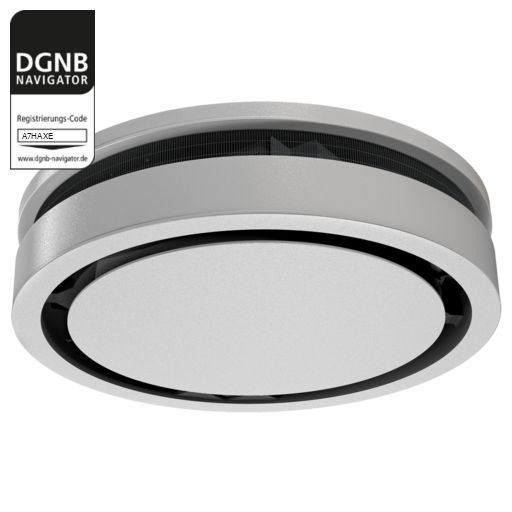

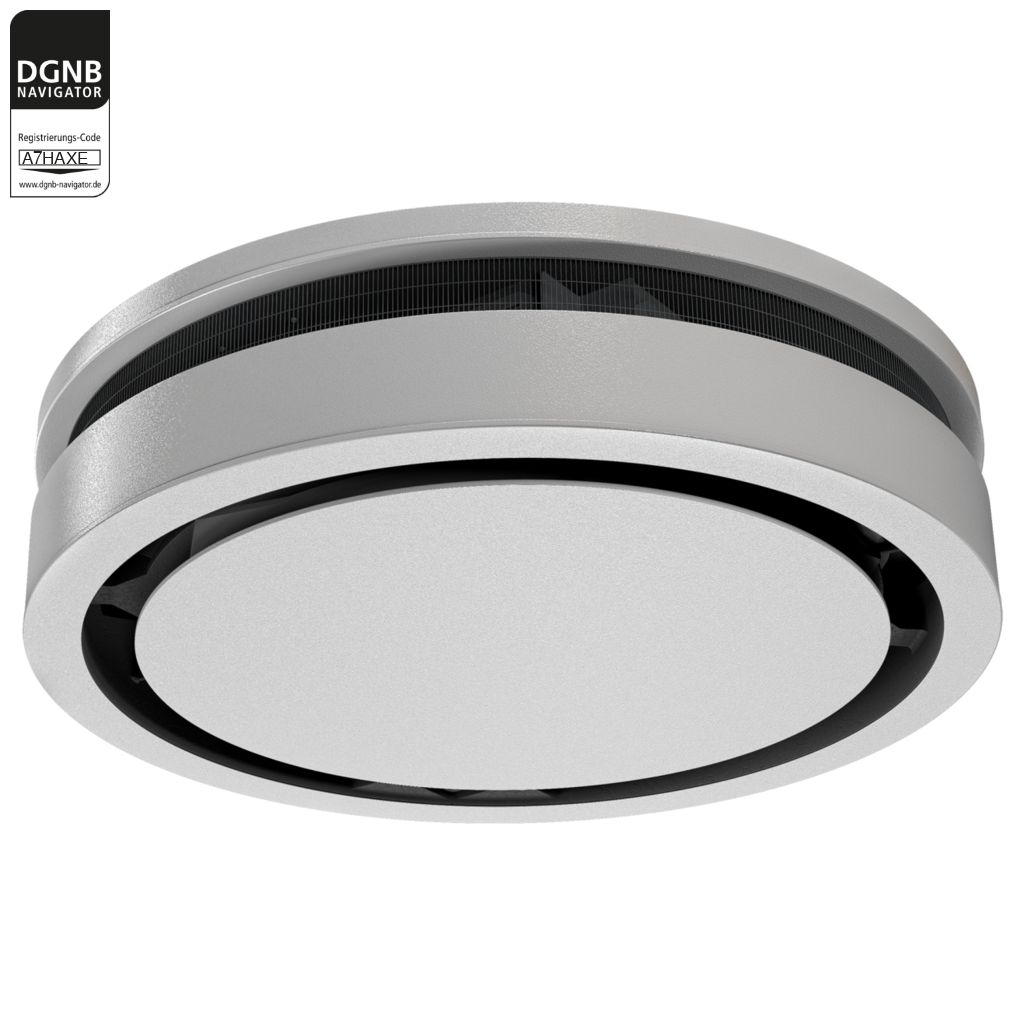

Ultra Allround - Baugröße 2, teilverkleidet

Registration Code: A7HAXE

Kunststoffe
Metalle

Product description

The unit heater Ultra Allround is a ceiling-mounted unit for heating, cooling and ventilation of large, high-end interiors, like retail chains, exhibition spaces and retail areas, entrance vestibules and retail outlets. The Ultra Allround product range is available in two sizes. The air is drawn in via the radial fan and blown through the circular heat exchanger into the room. In heating mode, warm air is discharged vertically into the room, and in cooling mode it is distributed horizontally. The heat exchangers are precisely configured for low-temperature operation to achieve the maximum energy-efficient outputs.

Instructions for use

The units are only intended to be used for heating and cooling air in frost-free and dry rooms. Within the room, the unit needs to be connected to the building's heating/cooling/ventilation system and to the building's waste water and power network. The operating limits and limits of use described in the installation instructions must be observed.

Reference to the DGNB system

ENV1.1 Building life cycle assessment
ENV1.1 Building life cycle assessment
Photochemical ozone creation potential (POCP)
1) Production stage
1,01E+00
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
2) Use stage
3,35E-02
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
3) End of life stage
3,82E-03
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-2,37E-01
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Unit
kg NMVOC-Equivalent
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Total use of non-renewable primary energy (PENRT)
1) Production stage
3,73E+03 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
2) Use stage
9,05E+01 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
3) End of life stage
4,36E+00 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-8,85E+02 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Total use of renewable primary energy (PERT)
1) Production stage
9,15E+02 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
2) Use stage
1,29E+01 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1,42E-01 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-8,82E+01 MJ
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
General life cycle assessment data
Building material class
not relevant
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Reference Unit
1 unit
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
If necessary, conversion of the reference unit
No conversion necessary.
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
End of life cycle
The end of life is modeled according to the JRC Report, Annex C V2.1.
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Useful life
20 years
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Global Warming Potential (GWP)
1) Production stage
2,32E+02
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
2) Use stage
5,62E+00
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1,38E+01
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-7,61E+01
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Unit
kg CO2-Equivalent
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Eutrophication (EP)
1) Production stage
1,41E-02; 2,10E-01; 2,44E+00
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
2) Use stage
6,52E-04; 7,23E-03; 8,96E-02
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
3) End of life stage
4,38E-06; 1,74E-03; 1,24E-02
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3,63E-03; -5,46E-02; -6,48E-01
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Unit
kg P-Eq. [EP-freshwater]; kg N-Eq. [EP-marine]; mol N-Eq. [EP-terrestrial]
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Acidification potential (AP)
1) Production stage
1,59E+00
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
2) Use stage
8,01E-02
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
3) End of life stage
2,63E-03
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3,44E-01
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Unit
mol H+- Equivalent
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Ozone Depletion Potential (ODP)
1) Production stage
4,22E-06
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
2) Use stage
1,57E-07
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
3) End of life stage
6,54E-09
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-7,09E-07
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
Unit
kg CFC11-Equivalent
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
ENV2.2 Potable water demand and waste water volume
ENV2.2 Potable water demand and waste water volume
Installation-specific connected load
Flow rate (for sanitary fittings)
not relevant l/sec
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
Average flushing volume (of the sanitary equipment)
not relevant l/flush
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
ECO1.1 Life cycle costs
ECO1.1 Life cycle costs
Actual useful life
20 years
Source
EPD-IES-0016828
Quality
[Externally audited specific manufacturer information]
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO1.4 Ensuring sustainability aspects in tendering and contracting
Tender textes
Product-related tender texts available, reference to EPD and registration in the DGNB Navigator in the tender texts.
Source
Tender texts Ultra Allround
Quality
[Unaudited manufacturer specification]
PRO2.5 Preparation of sustainable use
PRO2.5 Preparation of sustainable use
Maintenance, inspection, operating and care instructions
Yes, included in assembly instructions.
Source
Assembly instructions Ultra Allround
Quality
[Unaudited manufacturer specification]
SOC1.2 Indoor air quality
SOC1.2 Indoor air quality
Indoor hygiene - volatile organic compounds VOCs
Formaldehyde concentration
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
Other emission tests / labels
not relevant
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
TVOC value
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
Approval test according to AgBB scheme is available
not relevant
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
SOC1.3 Acoustic comfort
SOC1.3 Acoustic comfort
Rated building sound insulation value R`w
not relevant dB
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
SOC1.4 Visual comfort
SOC1.4 Visual comfort
Visual contact with the outside
Class of the sun/glare protection with regard to visual contact to the outside
not relevant
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
Colour rendering
Color rendering index Ra of artificial lighting
not relevant
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
TEC1.3 Quality of the building envelope
TEC1.3 Quality of the building envelope
Class of air permeability (joint permeability)
not relevant
Source
Manufacturer
Quality
[Unaudited manufacturer specification]
Heat transfer coefficient U
not relevant W/(m²K)
Source
Manufacturer
Quality
[Unaudited manufacturer specification]

Documents

Downloads

EPD Ultra Allround Baugröße 2 teilverkleidet.pdf

pdf
938 KB

Technischer Katalog Ultra Allround.PDF

pdf
10 MB

Montageanleitung Ultra Allround.PDF

pdf
8 MB

Contact the manufacturer

Kampmann GmbH & Co. KG

Kampmann GmbH & Co. KG

Kampmann GmbH & Co. KG

Friedrich-Ebert-Straße 128-130
49811 Lingen (Ems)
