Hansgrohe SE

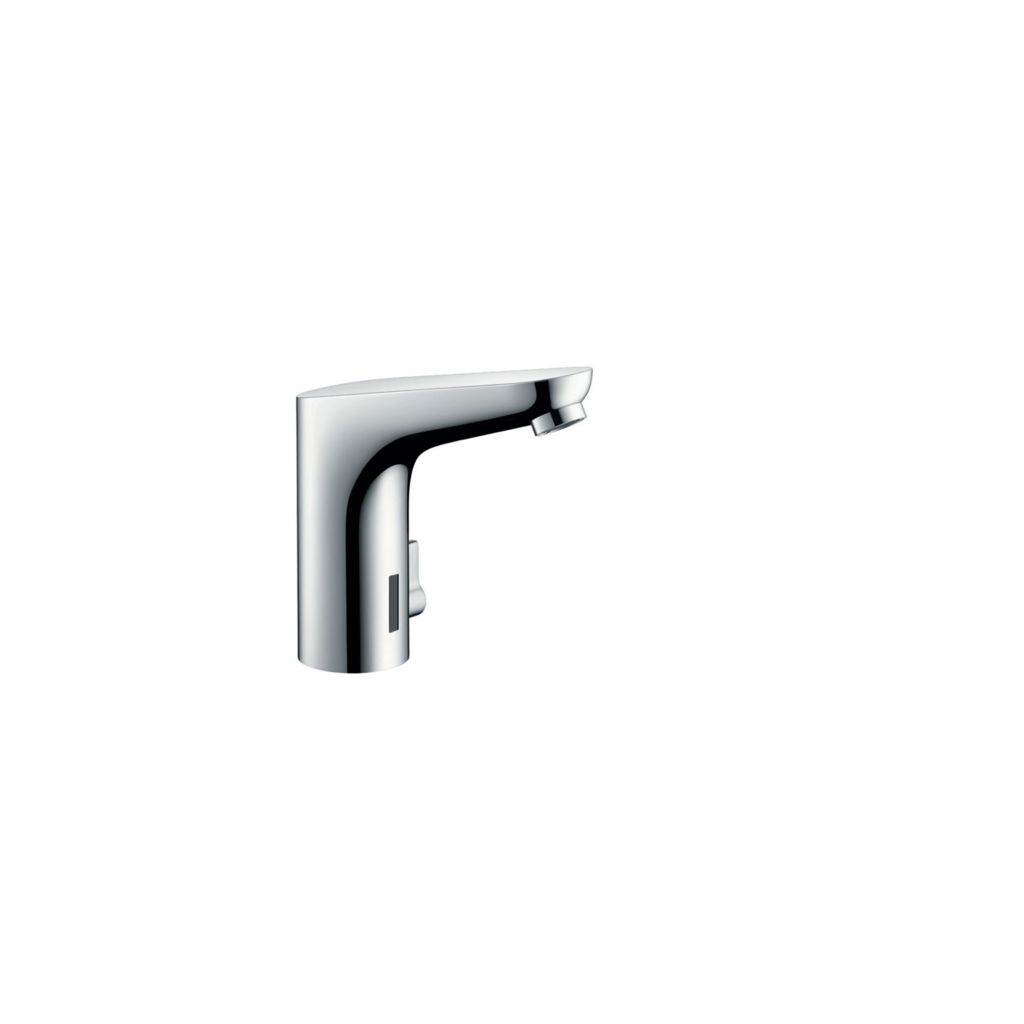

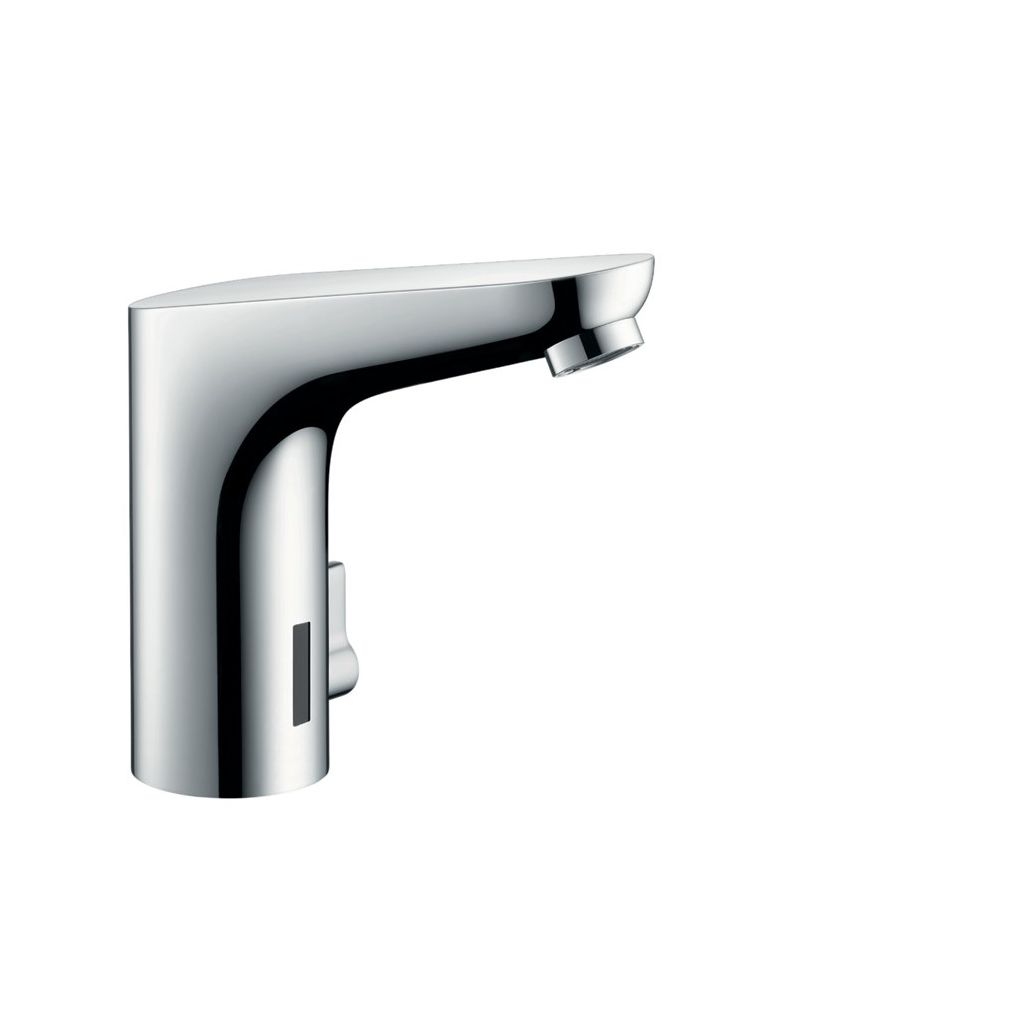

hansgrohe Focus Elektronik-Waschtischmischer 130 mit Temperaturregulierung Batteriebetrieb
Registration Code: 1OH0L7
Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Product description
Article Number: 31171000Surface: Chrome
ComfortZone 130
projection: 127 mm
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
temperature limitation adjustable
temperature adjustable via mixer lever on the side
non-return valve
suitable for continous flow water heaters
infrared sensor technology
automatic environmental adjustment of infrared sensor
adjustable optical range of infrared sensor (2 settings)
battery condition indicator available
battery operation 6V (lifetime approx. 2 years, battery included in scope of supply)
running time: 10 s
hygiene rinse activatable (automatic water flow)
frequency of hygiene rinse: 24 h
flushing time hygiene rinse: 10 s
permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)
cleaning mode: manual water stop for washbasin cleaning
connection dimension: DN15
TÜV certified
dirt filters in the connection hoses
EPDavailable for basin mixer
Instructions for use
Hansgrohe Service Instructionhttps://pro.hansgrohe.com/articledetail-focus-electronic-basin-mixer-130-with-temperature-control-battery-operation-31171000
Reference to the DGNB system
ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use
Documents
Downloads
Manufacturer note
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Green Building Certifications
With a maximum flowrate of 5 l/min this basin mixer is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.SensorActivation
Starts the electronic tap
The sensor on this contactless tap acts like a motion sensor as it responds to changes in the infrared rays. Water only flows once it detects warmth from hands. This is economical and environmentally friendly as well as contactless and hygienic.ComfortZone
Excellent user comfort
More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.EU Taxonomy
Substantial Contribution
With a maximal flow rate of 5l/min this basin mixer is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.Contact the manufacturer
Hansgrohe SE
Hansgrohe SE
Auestraße 5-9 77761 Schiltach
