Peikko Deutschland GmbH

Peikko BESISTA

Registration Code: Y8WORG

Metalle

Product description

Peikko BESISTA® Zugstab- und Druckstabsysteme setzen den Standard für die elegante Aussteifung von Gebäuden und anderen tragenden Strukturen.

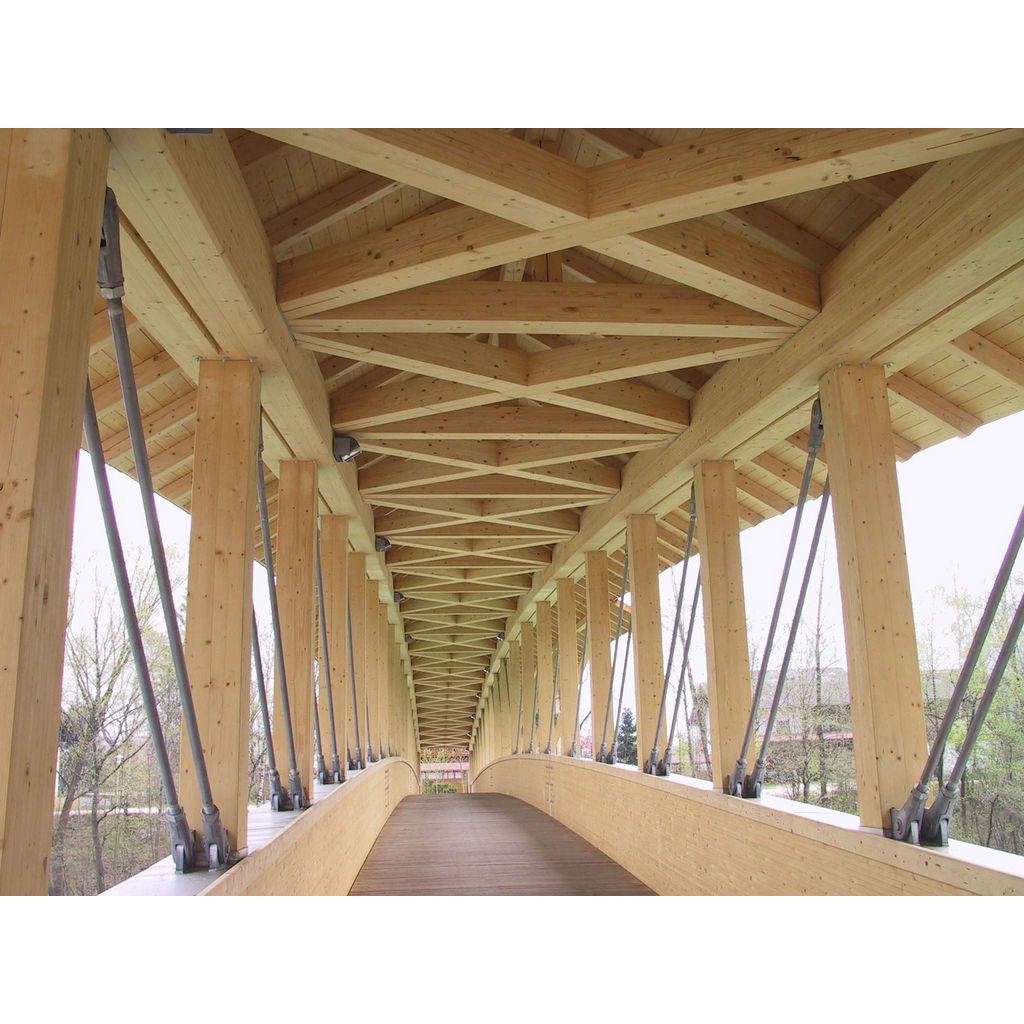

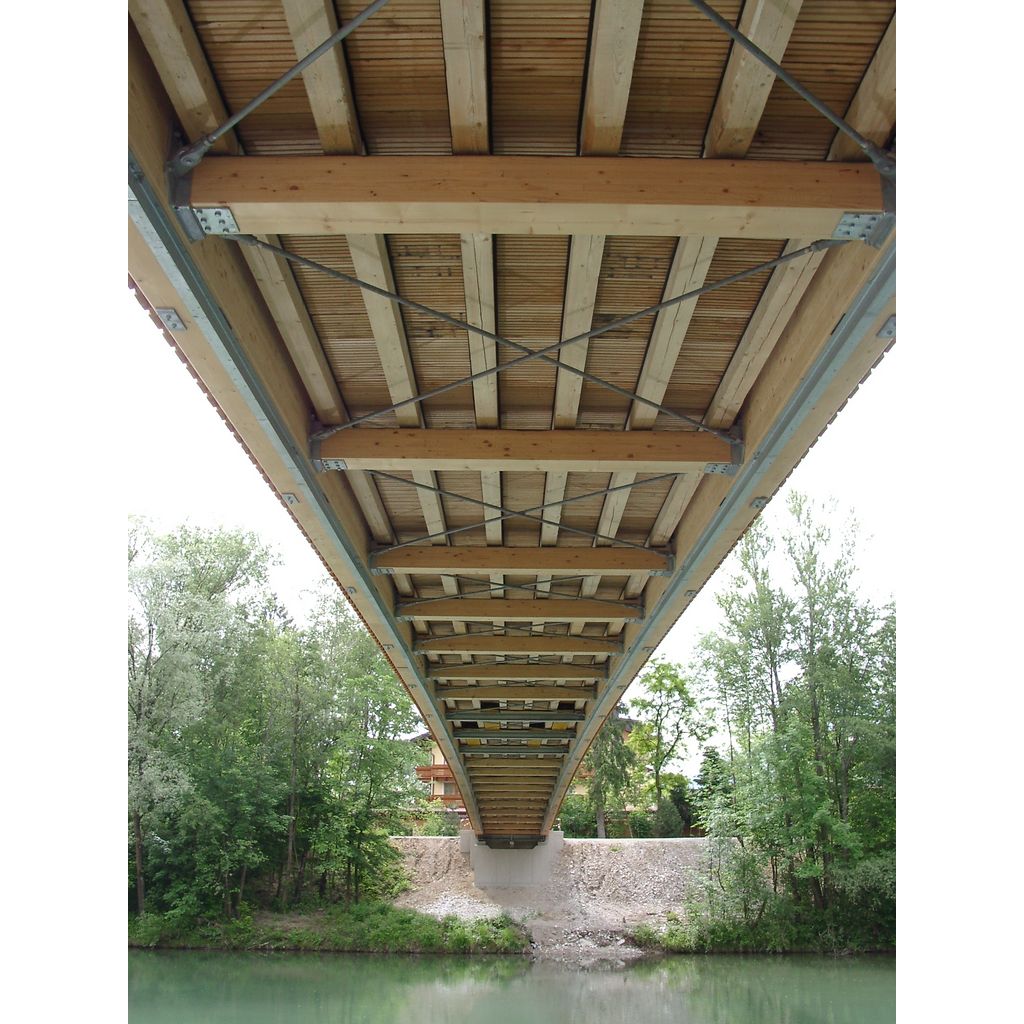

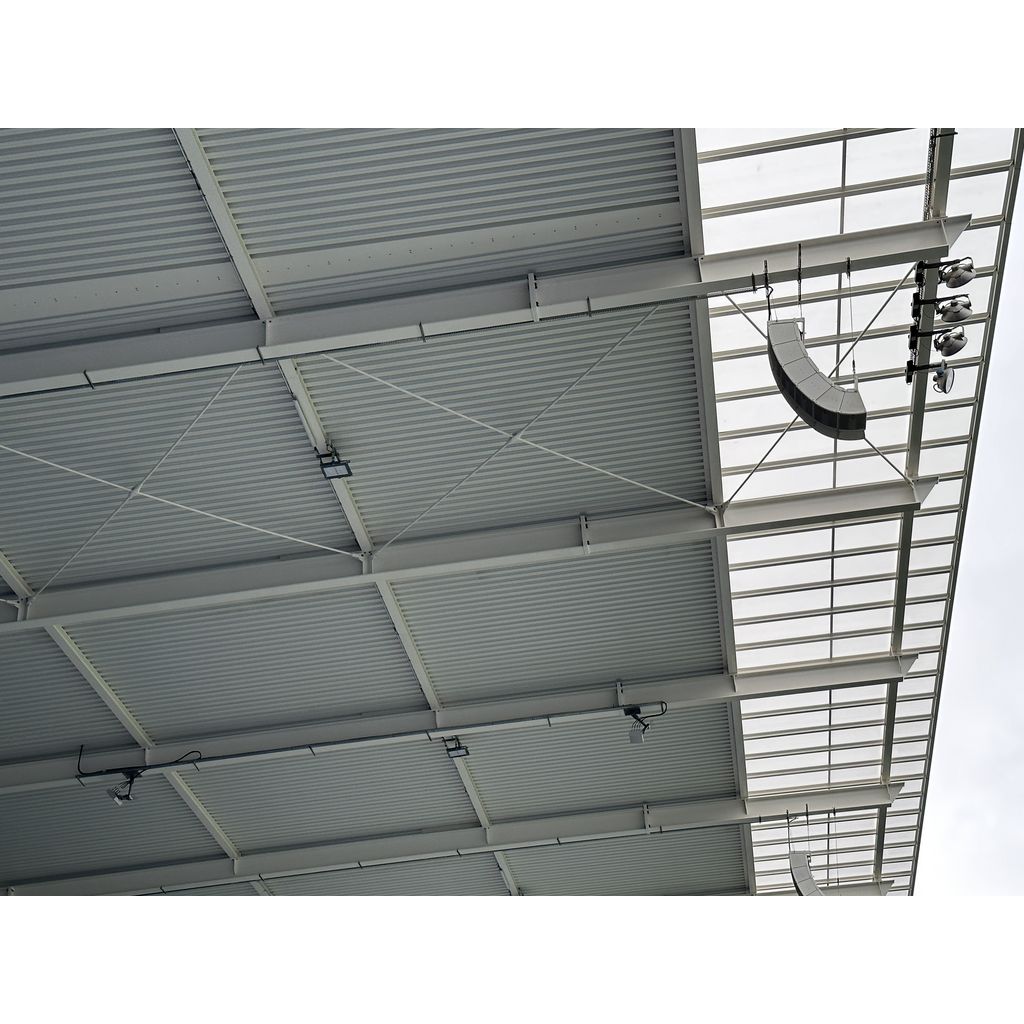

Das preisgekrönte BESISTA® System unterstützt Architekten und Bauherren dabei, mutige, eindrucksvolle und hochmoderne Räume an typischen Premium-Standorten zu schaffen. Zu den Anwendungen gehören verglaste Atrien, Dächer, Vorhangfassaden und Gebäudefronten - unter anderem in Flughafenterminals, großen Bahnhöfen, Einkaufszentren, Messehallen und Hängebrücken.

Instructions for use

BESISTA® ist stabil und leicht, mit überdurchschnittlich hohen Sicherheitsreserven. Es ist so konzipiert, dass es aus allen Blickwinkeln bis ins Detail gut aussieht, fließende Übergänge schafft und das Gebäude gut aussehen lässt.

Das System ist ETA-geprüft und CE-gekennzeichnet. Es wurde entwickelt, um den Energie- und Ressourcenverbrauch bei der Herstellung zu minimieren. Die hohe Qualität, Leistung und Zuverlässigkeit machen es zu einer effizienten und nachhaltigen Lösung.

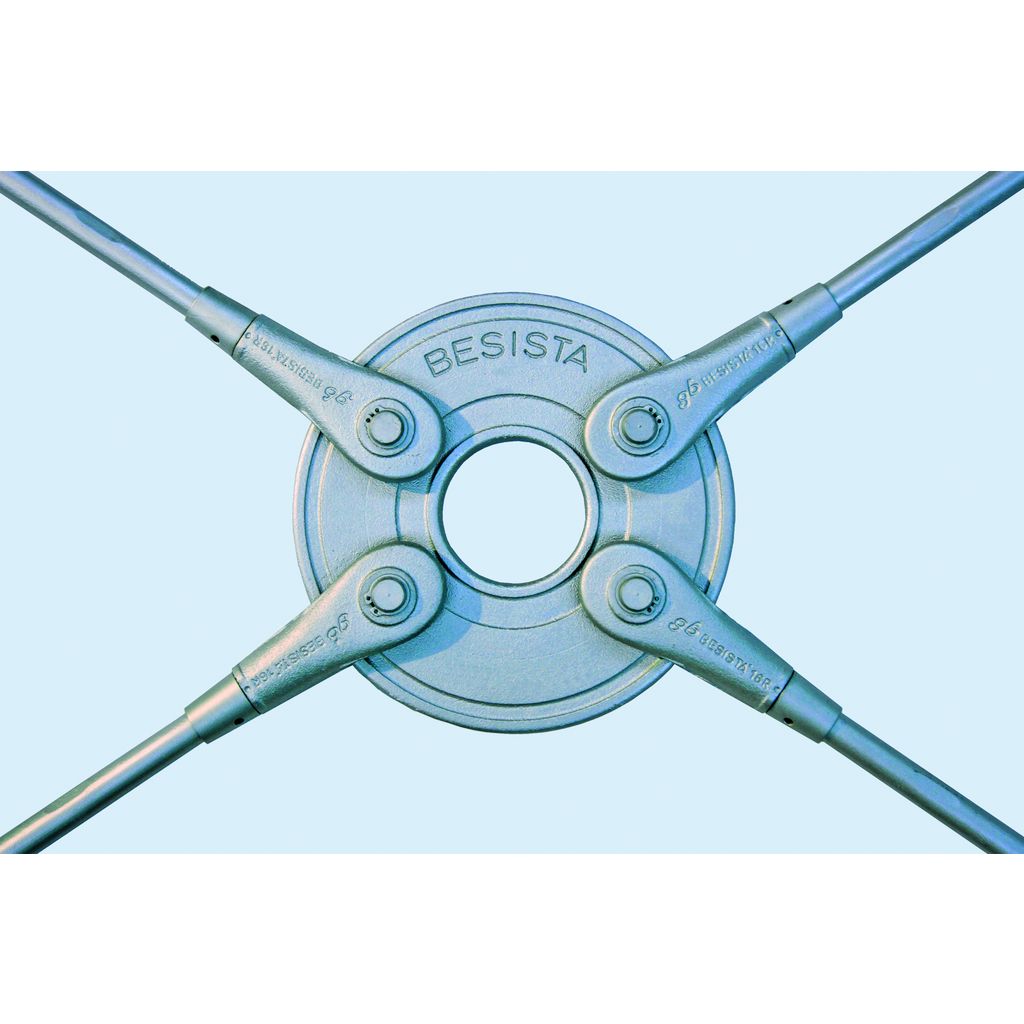

Das patentierte BESISTA® System und die Spezialelemente bieten branchenweit die umfangreichste Auswahl an Größen. Dazu gehören Zugstäbe, Stabanker, Bolzen und Sicherungsringe, Abdeck- und Verlängerungshülsen, Kreisscheiben, Winkel- und Kreuzanker sowie Kupplungen. Die Zugstäbe können bis zu einer Länge von 15 Meter hergestellt werden und zeichnen sich dabei durch einen besonders langen Verstellweg aus.

Alle Systemelemente, die Stabgewinde eingeschlossen, werden mit einer speziellen Feuerverzinkungen angeboten und bieten einen langanhaltenden Korrosionsschutz.

Reference to the DGNB system

ENV1.1 Building life cycle assessment
ENV1.1 Building life cycle assessment
Photochemical ozone creation potential (POCP)
1) Production stage
7,09E-03
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
2) Use stage
MND
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
3) End of life stage
6,93E-04
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-4,22E-04
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Unit
kg NMVOC-Equivalent
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Total use of non-renewable primary energy (PENRT)
1) Production stage
2,08E+01 MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
2) Use stage
MND MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
3) End of life stage
7,11E-01 MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3,04E-01 MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Total use of renewable primary energy (PERT)
1) Production stage
1,68E+00 MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
2) Use stage
MND MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
3) End of life stage
7,84E-03 MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
6,23E-02 MJ
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
General life cycle assessment data
Building material class
R30, higher fire rate with additional fire protection
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Reference Unit
1 Kg
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
If necessary, conversion of the reference unit
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
End of life cycle
recycling
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Global Warming Potential (GWP)
1) Production stage
1,72E+00
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
2) Use stage
MND
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
3) End of life stage
5,21E-02
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-5,27E-02
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Unit
kg CO2-Equivalent
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Eutrophication (EP)
1) Production stage
1,00E‐04; 1,93E‐03; 1,63E‐02
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
2) Use stage
MND
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
3) End of life stage
2,92E-07; 2,30E-04; 2,52E-03
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
1,23E‐06; 5,49E‐05; ‐4,44E‐04
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Unit
kg PO4-Equivalent
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Acidification potential (AP)
1) Production stage
7,22E-03
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
2) Use stage
MND
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
3) End of life stage
5,28E-04
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-4,78E-05
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Unit
mol H+- Equivalent
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Ozone Depletion Potential (ODP)
1) Production stage
1,14E-07
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
2) Use stage
MND
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1,08E-08
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3,77E-10
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]
Unit
kg CFC11-Equivalent
Source
EPD Peikko BESISTA vom 06.05.2024
Quality
[Externally audited specific manufacturer information]

Documents

Downloads

EPD_Peikko_BESISTA_GmbH_BESISTA_rod_system_HUB-1363_2024-05-20.pdf

pdf
598 KB

Links

Peikko BESISTA

Contact the manufacturer

Peikko Deutschland GmbH

Peikko Deutschland GmbH

Brinker Weg 15
34513 Waldeck
