Hansgrohe SE

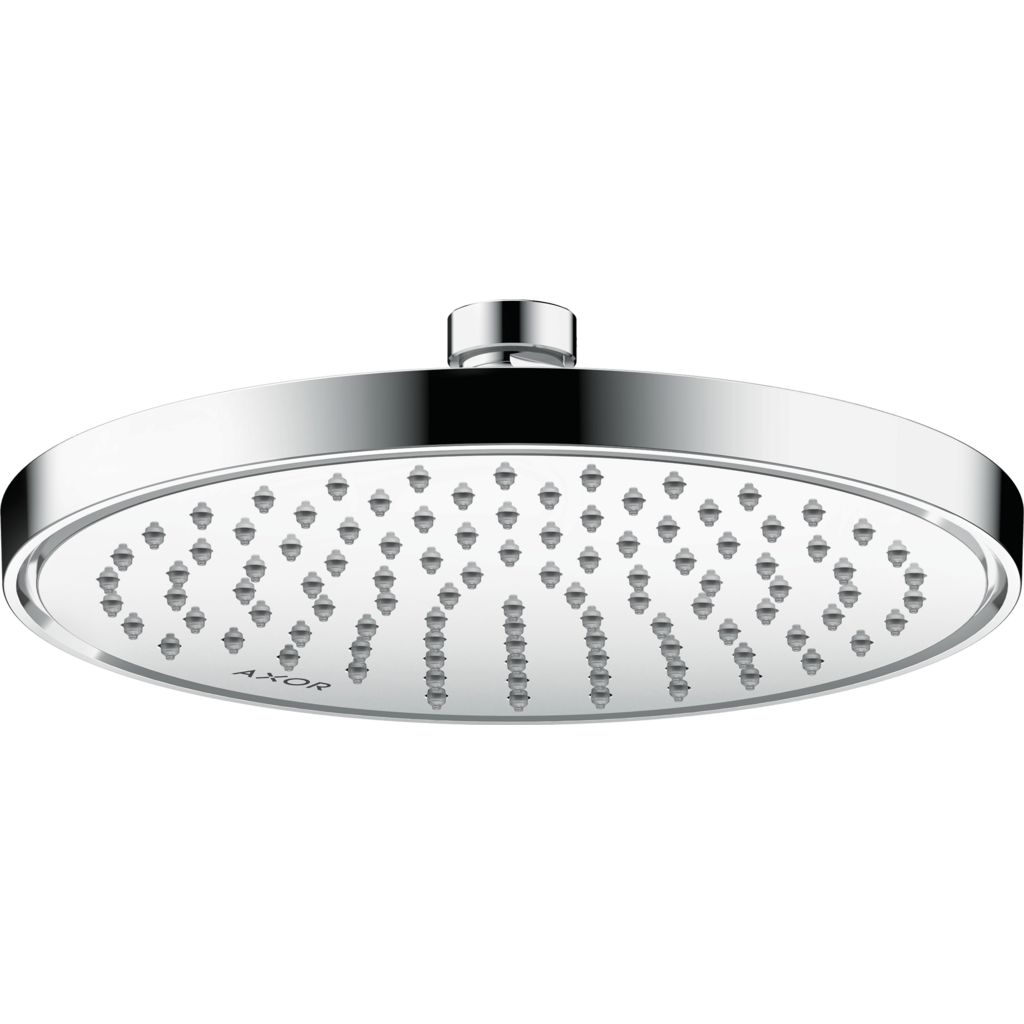

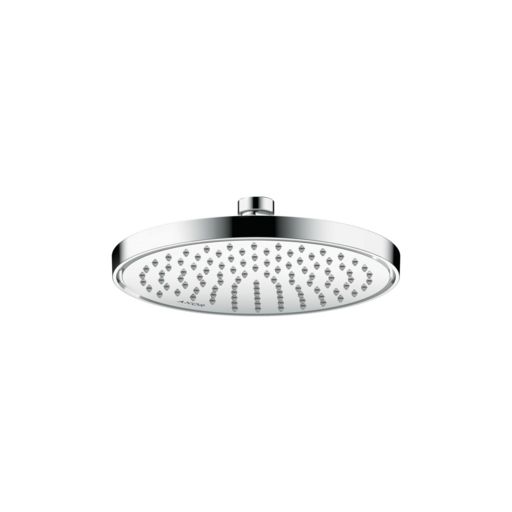

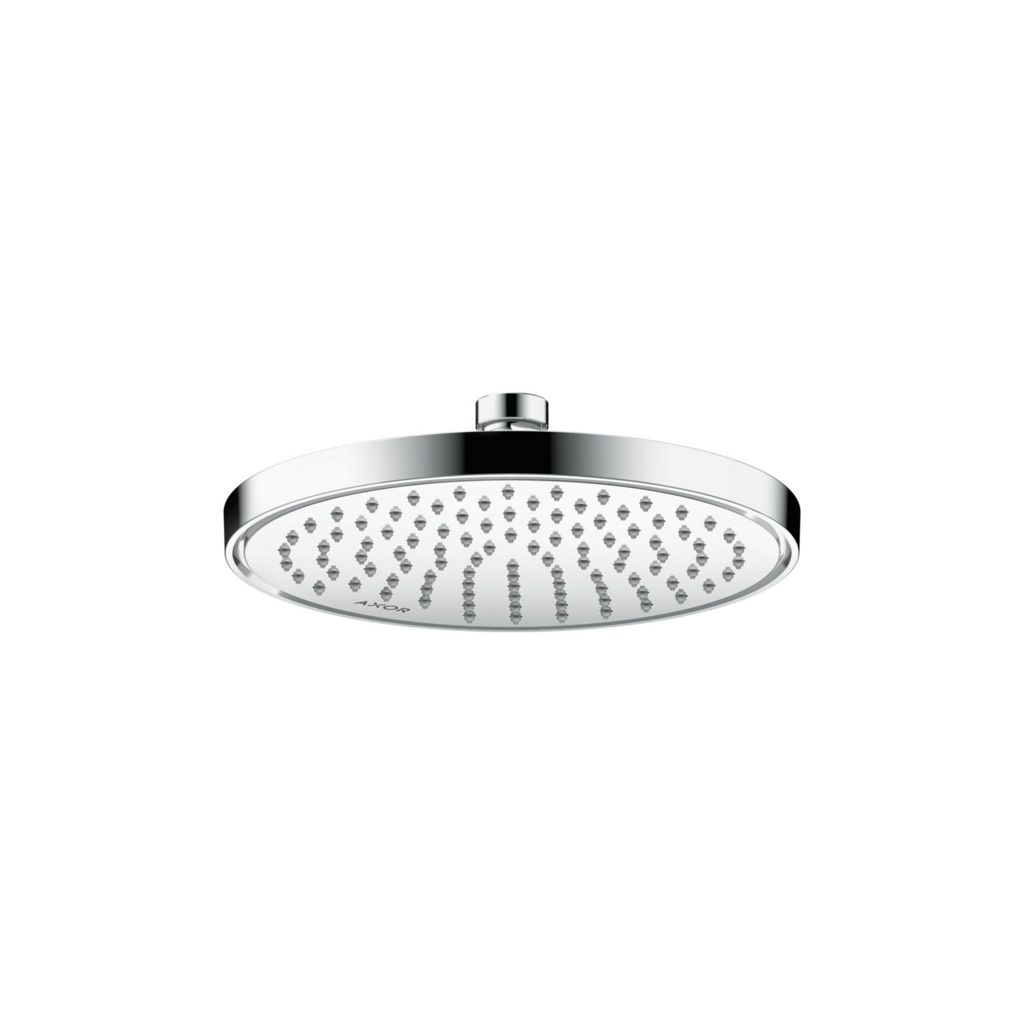

AXOR Shower Solutions Kopfbrause 220 1jet EcoSmart+

Registration Code: 88ICN6

Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Metalle

Product description

Article number: 35388000
Surface: Chrome
shower head size: 220 mm
spray type: Rain
ball-joint: overhead shower angle adjustable
material spray disc: metal
maximum flow rate at 3 bar: 5,6 l/min
flow rate Rain spray (at 3 bar): 5,6 l/min
function from: 2,6 l/min
minimum flow pressure: 0,6 bar
overhead shower removable for cleaning
installation: ceiling or wall
connection thread G ½
suitable for continous flow water heaters
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-axor-showersolutions-overhead-shower-220-1jet-ecosmart-35388000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use

Documents

Downloads

hansgrohe Reinigungsempfehlung.pdf

pdf
1 MB

AXOR ShowerSolutions KB 220 1jet EcoSmart+_Montageanleitung.pdf

pdf
2 MB

Produktdatenblatt_35388000.pdf

pdf
1 MB

Manufacturer note

EcoSmart+

Want to save water? With pleasure!

This shower head uses up to 40% less water than our conventional showers. In this way, it reduces water and energy costs every day and conserves valuable resources. For long-lasting soothing showering pleasure.

Green Building Certifications

With a maximum flowrate of 7,4 l/min this shower is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

EU Taxonomy

With a maximal  flow rate of 7,4 l/min this shower is compliant with the EU Taxonomy requirements and is compliant with the relevant environmental goals defined by the EU (DNSH*).

*Do No Significant Harm

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Contact the manufacturer

Hansgrohe SE

Hansgrohe SE

Auestraße 5-9
77761 Schiltach
