Kampmann GmbH & Co. KG
Katherm NK
Registration Code: 7GQCJB
Holz und Holzwerkstoffe (u. nachw. Rohstoffe)
Metalle
Product description

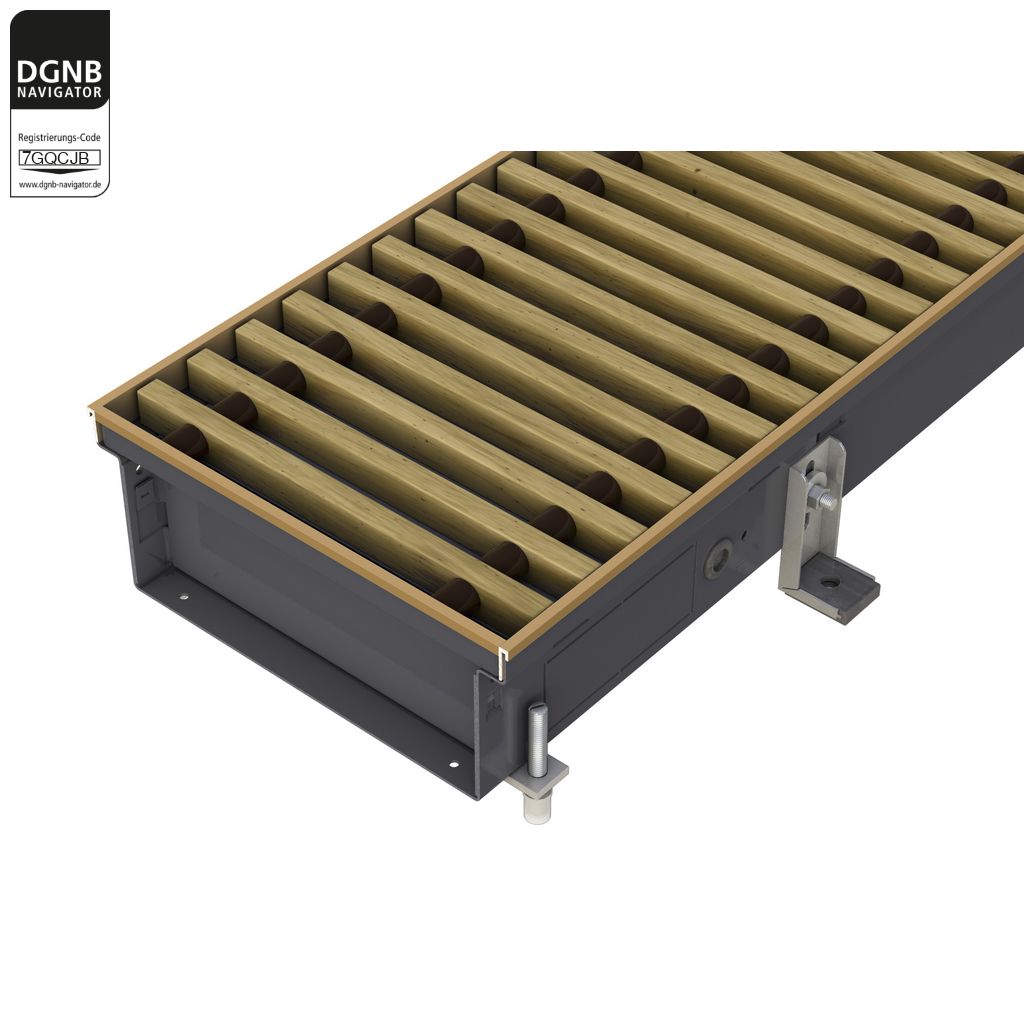

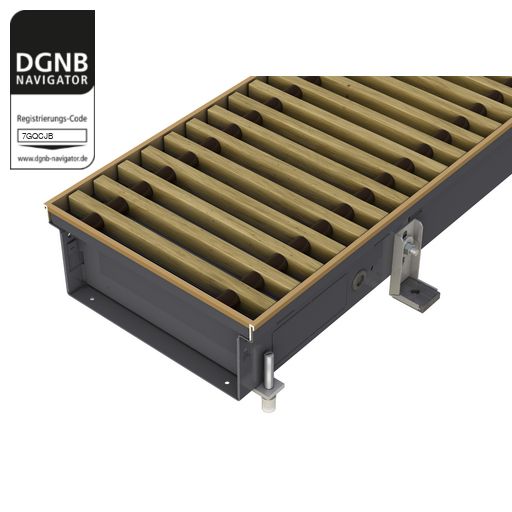

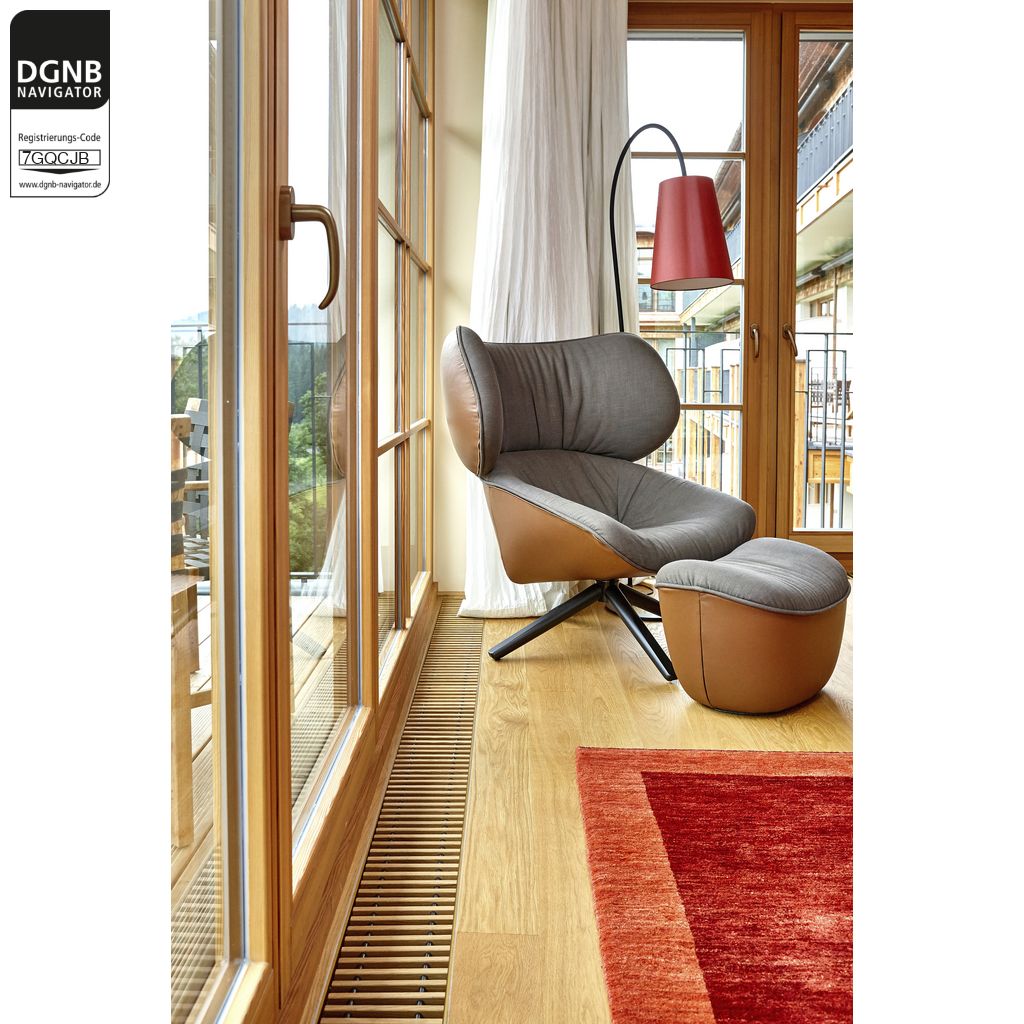

Trench units are installed along floor-to-ceiling window surfaces in the floor. The Katherm NK provides a comfortable feel-good climate in the room through natural convection. The cooled room air sinks into the floor channel, flows through the water-heated convector and rises as heated air at the window surfaces to then be distributed in the room. The Katherm NK is suitable for full room heating, residual heat coverage and cold air screening. The unit is available in various duct widths, heights and lengths for heating the room as required. The Katherm NK has a convector consisting of round copper pipes with aluminium fins through which hot water flows. The units can also be equipped with an electromechanical control system to regulate the units according to the customer's requirements. The unit components are mounted in a floor trench, which is covered by a roll-up grille or a linear grille. This decorative cover of the trench unit is available in aluminium, brass, stainless steel and wood.The Katherm NK trench unit is used to heat rooms with large window areas. Exemplary areas of application for the unit are hotels, offices, sales and exhibition rooms.
Instructions for use
The units are used to heat all areas of buildings that need to be heated in winter. Within the room to be heated, the unit needs to be connected to the building's heating/ventilation system and to the building's power network. The operating limits and limits of use must be observed.Manufacturer note
Note on document download
All documents mentioned in this product profile (technical catalogue, environmental product declaration (EPD), assembly instructions) are available in their current version in the document download on the Kampmann GmbH & Co. KG website.Note on LCA data
The LCA data given were calculated according to the specifications of the EN 15804:2012+A2:2019 standard.Contact the manufacturer
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
Friedrich-Ebert-Straße 128-130 49811 Lingen (Ems)
