Hansgrohe SE

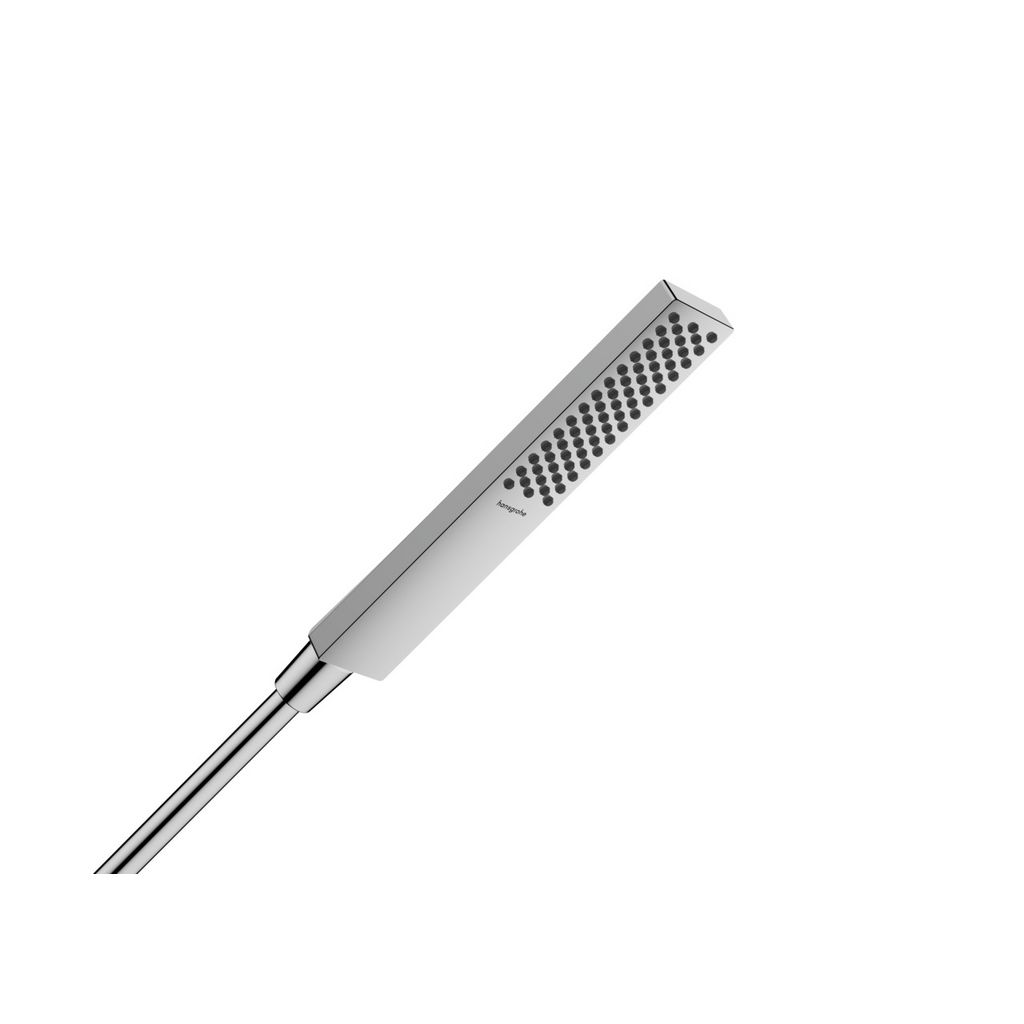

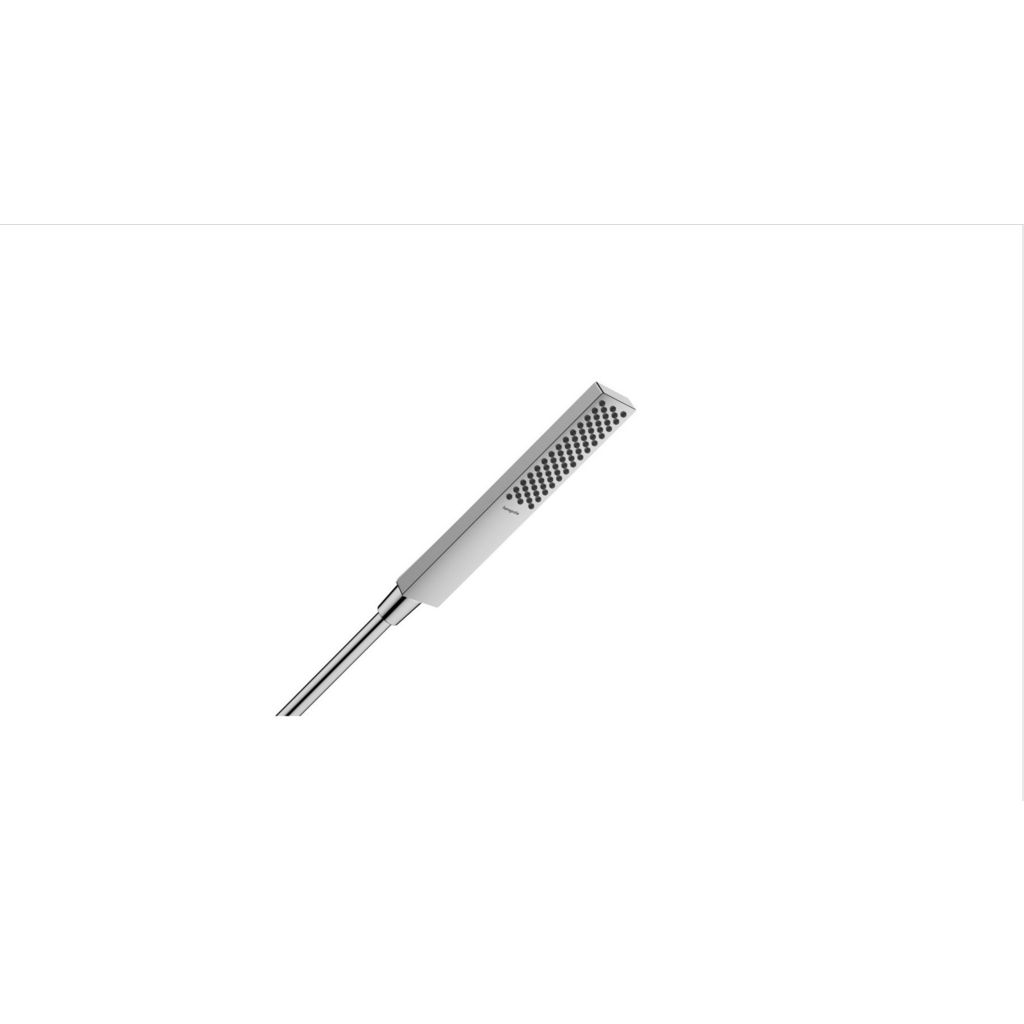

hansgrohe Pulsify E Stabhandbrause 100 1jet EcoSmart+

Registration Code: M3RY23

Quality phase
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Metalle

Product description

Article number: 24321000
Surface: Chrome
shower head size: 100 x 25 mm
spray type: PowderRain
maximum flow rate at 3 bar: 5 l/min
minimum flow pressure: 0,9 bar
with internal water conduction
rinseable sieve insert
connection thread G ½
suitable for continous flow water heaters
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-pulsify-e-baton-hand-shower-100-1jet-ecosmart-24321000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume
ENV2.2 Potable water demand and waste water volume
Installation-specific connected load
Flow rate (for sanitary fittings)
0,08 l/sec
Source
Hansgrohe SE
Quality
[Externally audited specific manufacturer information]
ECO1.1 Life cycle costs
ECO1.1 Life cycle costs
Actual useful life
15 years
Source
Hansgrohe
Quality
[Unaudited manufacturer specification]
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO1.4 Ensuring sustainability aspects in tendering and contracting
Tender textes
https://ausschreiben.de/catalog/hansgrohe
Source
Hansgrohe
Quality
[Unaudited manufacturer specification]
PRO2.5 Preparation of sustainable use
PRO2.5 Preparation of sustainable use
Maintenance, inspection, operating and care instructions
Yes
Source
Hansgrohe
Quality
[Unaudited manufacturer specification]

Documents

Downloads

hansgrohe Reinigungsempfehlung.pdf

pdf
1 MB

Pulsify E Stabhandbrause_Montageanleitung.pdf

pdf
7 MB

Produktdatenblatt_24321000.pdf

pdf
1 MB

Manufacturer note

Green Building Certifications

With a maximum flowrate of 5 l/min this handshower is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

EcoSmart+

Save water and protect the climate

With a consumption of up to 60% less water than our conventional models, this shower is particularly efficient and economical, reducing water and energy costs every day and conserving valuable resources.

EU Taxonomy

Substantial Contribution

With a maximal  flow rate of 5l/min this handshower is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.

Contact the manufacturer

Hansgrohe SE

Hansgrohe SE

Auestraße 5-9
77761 Schiltach
