aquatherm GmbH

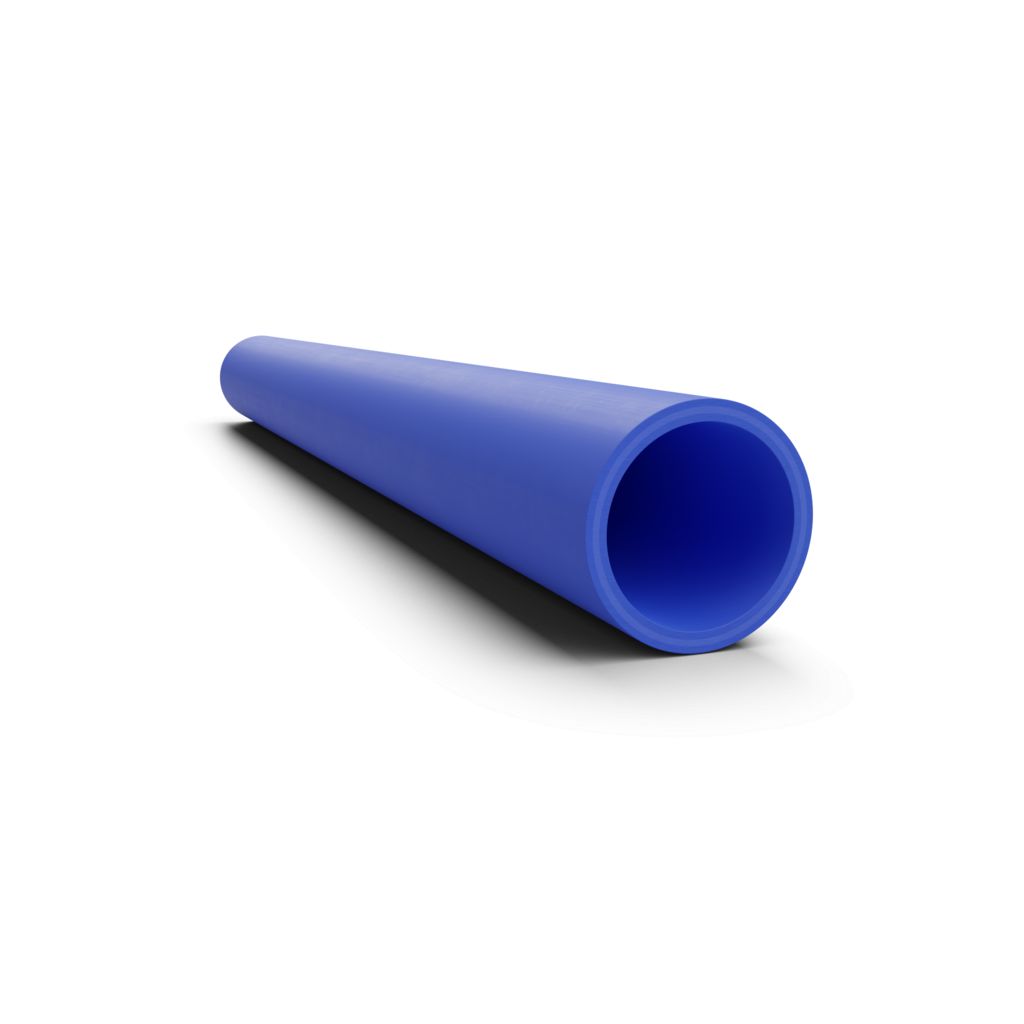

aquatherm blue

Registration Code: FRUR6Z

Product description

aquatherm blue made of corrosion-resistant polypropylene (PP) is the specialist for the transport of cooling and heating media in closed systems and is therefore particularly suitable for a wide range of industrial applications. The physical properties of the plastic are adapted to the special needs of the heating and cooling sector.

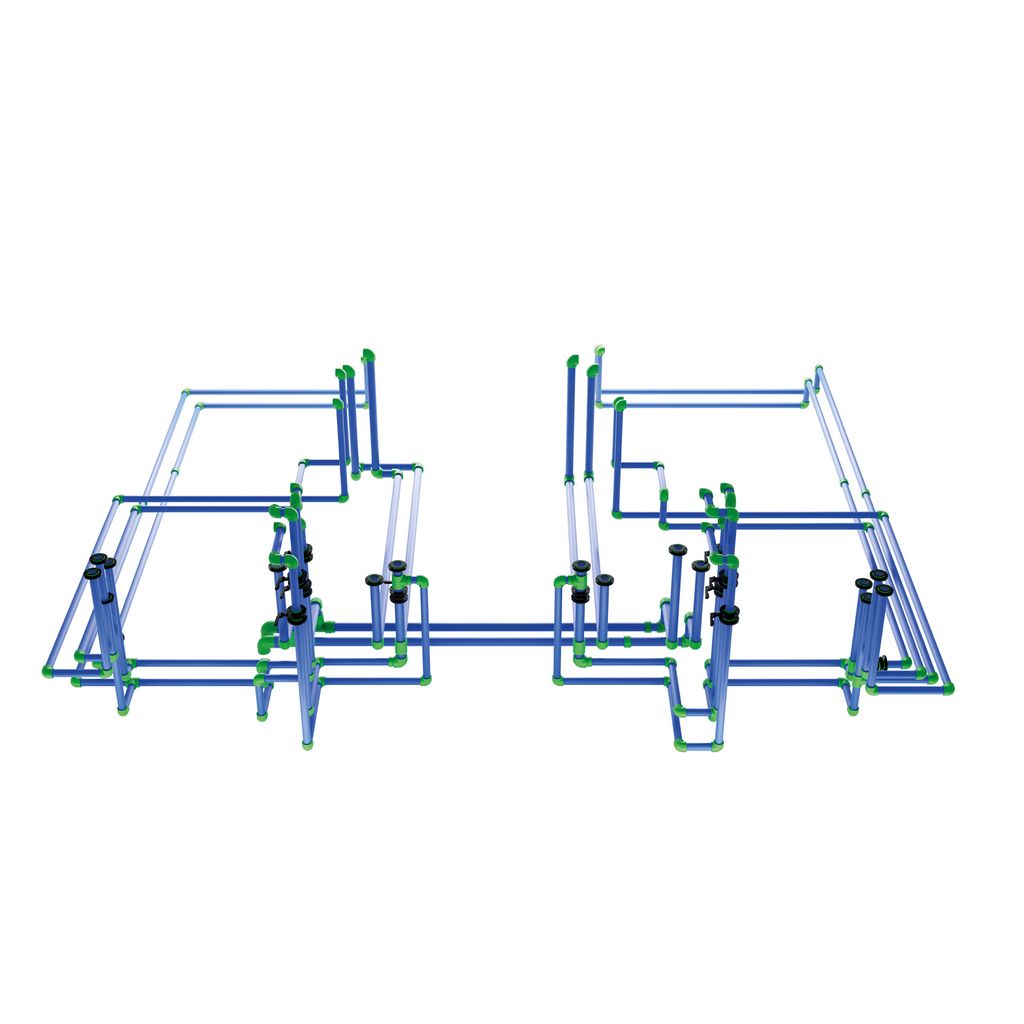

The material is characterised by high temperature and pressure resistance. Due to the exceptionally good welding properties, the pipe and fitting merge into a homogeneous, materially cohesive unit. This results in a maximum of safety and service life. In combination with the extensive range of fittings, the system includes all components for the pipe performance installation of air-conditioning and heating systems as well as for plant technology.

Reference to the DGNB system

ENV1.1 Building life cycle assessment
ENV1.1 Building life cycle assessment
Photochemical ozone creation potential (POCP)
1) Production stage
1.51E-03
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
2) Use stage
Modul nicht deklariert
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
3) End of life stage
7.51E-05
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-7.96E-04
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
Total use of non-renewable primary energy (PENRT)
1) Production stage
3.12E+01 MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
2) Use stage
Modul nicht deklariert MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1.67E-01 MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1.26E+01 MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
Total use of renewable primary energy (PERT)
1) Production stage
1.54E+00 MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
2) Use stage
Modul nicht deklariert MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
3) End of life stage
2.93E-02 MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1.62E-01 MJ
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
General life cycle assessment data
Reference Unit
1 meter of piping system
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
If necessary, conversion of the reference unit
0,411 kg/m
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
End of life cycle
Brass fittings: 100% recycling; remaining pipe system: 100% thermal recycling
Source
BREG EN EPD No. 000475
Quality
[Externally audited industry specification]
Useful life
50 years
Source
aquatherm GmbH
Quality
[Unaudited manufacturer specification]
Global Warming Potential (GWP)
1) Production stage
9.94E-01
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
2) Use stage
Modul nicht deklariert
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1.14E+00
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-8.07E-01
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
Eutrophication (EP)
1) Production stage
7.88E-06
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
2) Use stage
Modul nicht deklariert
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1.57E-08
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-8.84E-08
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
Acidification potential (AP)
1) Production stage
1.69E-03
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
2) Use stage
Modul nicht deklariert
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
3) End of life stage
1.17E-04
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-9.16E-04
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
Ozone Depletion Potential (ODP)
1) Production stage
5.98E-15
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
2) Use stage
Modul nicht deklariert
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
3) End of life stage
9.19E-17
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1.02E-15
Source
BREG EN EPD No. 000475
Quality
[Externally audited specific manufacturer information]

Documents

Downloads

BREGENEPD000475_aquatherm_blue_green_S_MF_MF-RP_piping_ system.pdf

pdf
949 KB

Contact the manufacturer

aquatherm GmbH

aquatherm GmbH

Biggen 5
57439 Attendorn
