Kampmann GmbH & Co. KG
Ultra - Baugröße 73
Registration Code: K0VVJL
Kunststoffe
Metalle
Product description

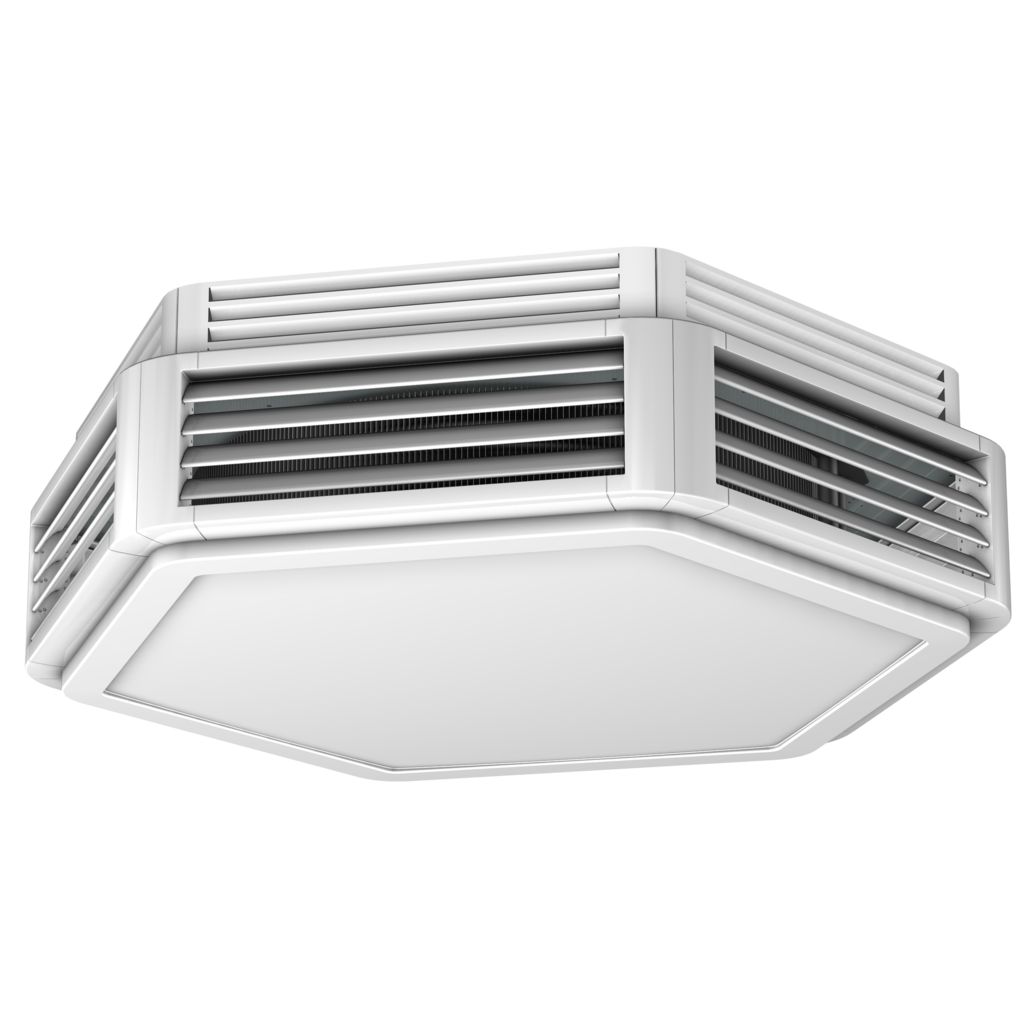

The unit heater Ultra is a ceiling-mounted unit for heating, cooling and ventilation of large, high-end interiors with most exacting demands in terms of design and comfort, like retail chains, showrooms and shop floors, entrance halls and retail stores. The Ultra product range is available in four sizes. The air is drawn in via the axial fan and blown through the circular heat exchanger into the room. The heated or cooled air is guided into the room on-demand through the pre-settable louvre slats. Models with large heat exchanger capacity are ideal for use with low water temperatures.Instructions for use
These units are used for the decentralised heating and ventilation of high-ceiling buildings, industrial and commercial workplaces and buildings with a connection to a district heating system or broad temperature spreads. Within the room, the unit needs to be connected to the building's heating/cooling/ventilation system and to the building's waste water and power network. The operating limits and limits of use described in the installation instructions must be observed.Reference to the DGNB system
ENV1.1 Building life cycle assessment
ENV1.1 Building life cycle assessment
Photochemical ozone creation potential (POCP)
1) Production stage
5,76E-01
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
1,37E-02
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
2,87E-03
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1,60E-01
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Unit
kg NMVOC-Equivalent
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Total use of non-renewable primary energy (PENRT)
1) Production stage
1,95E+03 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
3,30E+01 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
2,85E+00 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-6,19E+02 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Total use of renewable primary energy (PERT)
1) Production stage
3,70E+02 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
3,76E+00 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,52E-01 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1,65E+02 MJ
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
General life cycle assessment data
Building material class
not relevant
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Reference Unit
1 unit
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
If necessary, conversion of the reference unit
No conversion necessary.
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
End of life cycle
The end of life is modeled according to the JRC Report, Annex C V2.1.
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Useful life
20 years
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Global Warming Potential (GWP)
1) Production stage
1,16E+02
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
1,99E+00
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,01E+01
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-4,45E+01
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Unit
kg CO2-Equivalent
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Eutrophication (EP)
1) Production stage
9,78E-03; 1,35E-01; 1,69E+00
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
2,60E-04; 3,06E-03; 3,97E-02
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
6,24E-06; 2,28E-03; 8,88E-03
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-2,44E-03; -3,42E-02; -4,07E-01
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Unit
kg P-Eq. [EP-freshwater]; kg N-Eq. [EP-marine]; mol N-Eq. [EP-terrestrial]
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Acidification potential (AP)
1) Production stage
1,73E+00
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
4,27E-02
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,99E-03
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3,63E-01
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Unit
mol H+- Equivalent
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Ozone Depletion Potential (ODP)
1) Production stage
1,57E-06
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
4,52E-08
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
4,58E-09
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-6,82E-07
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
Unit
kg CFC11-Equivalent
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
ENV2.2 Potable water demand and waste water volume
ENV2.2 Potable water demand and waste water volume
Installation-specific connected load
Flow rate (for sanitary fittings)
not relevant l/sec
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Average flushing volume (of the sanitary equipment)
not relevant l/flush
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
ECO1.1 Life cycle costs
ECO1.1 Life cycle costs
Actual useful life
20 years
- Source
- EPD-IES-0018428
- Quality
- [Externally audited specific manufacturer information]
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO1.4 Ensuring sustainability aspects in tendering and contracting
Tender textes
Product-related tender texts available, reference to EPD and registration in the DGNB Navigator in the tender texts.
- Source
- Tender texts Ultra
- Quality
- [Unaudited manufacturer specification]
PRO2.5 Preparation of sustainable use
PRO2.5 Preparation of sustainable use
Maintenance, inspection, operating and care instructions
Yes, included in assembly instructions.
- Source
- Assembly instructions Ultra
- Quality
- [Unaudited manufacturer specification]
SOC1.2 Indoor air quality
SOC1.2 Indoor air quality
Indoor hygiene - volatile organic compounds VOCs
Formaldehyde concentration
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Other emission tests / labels
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
TVOC value
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Approval test according to AgBB scheme is available
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
SOC1.3 Acoustic comfort
SOC1.3 Acoustic comfort
Rated building sound insulation value R`w
not relevant dB
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
SOC1.4 Visual comfort
SOC1.4 Visual comfort
Visual contact with the outside
Class of the sun/glare protection with regard to visual contact to the outside
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Colour rendering
Color rendering index Ra of artificial lighting
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
TEC1.3 Quality of the building envelope
TEC1.3 Quality of the building envelope
Class of air permeability (joint permeability)
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Heat transfer coefficient U
not relevant W/(m²K)
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Contact the manufacturer
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
Friedrich-Ebert-Straße 128-130 49811 Lingen (Ems)
Related products from this manufacturer
#M2R69G

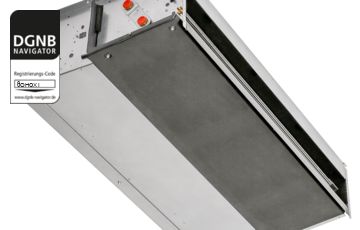

Venkon XL - Baugröße 1
